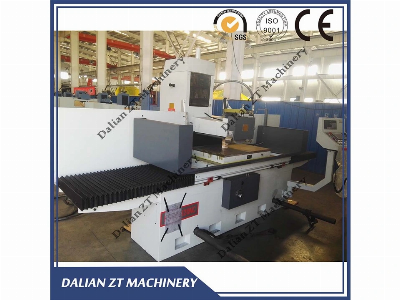

3-axis PLC (NC) Surface Cylindrical Grinding  Machine 600x1200mm Worktable Grinder

Features:Independent hydraulic station;Automatic center lubrication unit;Auto grinding program including rough, finish and spark-out stroke to realize automatic grinding; High precision spindle unit with angular ball bearing; MPG is equipped for Y & Z-axis to improve production efficiency; The machine is the column-moving grinding machine with horizontal spindle and rectangular worktable. The machine is a very efficient machine consisted by the technologies of mechanical, electrical and hydraulic. The machine can grind the workpiece automatically by do the simple settings through the control panel. The worktable longitudinal movement (X axis): the machine's longitudinal movement is controlled by the hydraulic system, the speed of movement can be adjusted by the handle locates in front of the machine. The movement direction is controlled by the electro hydraulic valve.The column cross movement (Z axis): the column movement is by the timing belt and leadscrew driven by the servo motor. So that the machine can make continuous feed and auto interment feed. TThe hydraulic power is supported by the hydraulic station. The hydraulic station equips with the oil temperature controller. The hydraulic station can provide the power for the high precision grinding and keep the heat and shake form the machine. The machine equips the complete electro interlock protection.  Standard accessories:Tools and tool box; Coolant tank; Balancing arbor; Grinding flange and wheel; Grinding wheel extractor; Levelling wedge; MPG for Y/Z-axis;                   ItemSG-60120NCSG-60160NCTable size W*L630x1250mm630x1600mmMax. Grinding size W*L600x1000mm600x1000mmMax.    Distance    from    table    tospindle center600mmMagnetic chuck size (optional)600x1000mmx1600x800mx2Speed  of   table     longitudinal movement5-25m/minWheel head cross movement Auto intermittent feed0-30mm/tRapid travel0-600mm/minFeed of MPG0.005mm/div.Wheel head vertical movement Auto feed0.005,0.01,0.02,0.03,0.04Rapid feed0-300mm/minSpindle motor7.5kW7.5kWPacking size399x225x250cm564x225x250mmGross weight5500kg6000kgStandard accessories:Working lamp; Balancing shaft; Splashing guard; Standard grinding wheel; Levelling wedge; Built-in magnetic chuck controller; Coolant tank; Wheel dresser;                     WORKSHOPEFAQ 1. MOQ   1 set . 2. DELIVERY TIME       It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.  3.  PAYMENT TERM    T/T 30% down payment when order, 70% balance payment before shipment.4. WARRANTY PERIOD 13 months from the date of B/L, during the warranty period, daily damage parts will be supplied  freely,  the after sale service will be done by dealers . After warranty period, the spare parts will be   supplied at factory price.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
