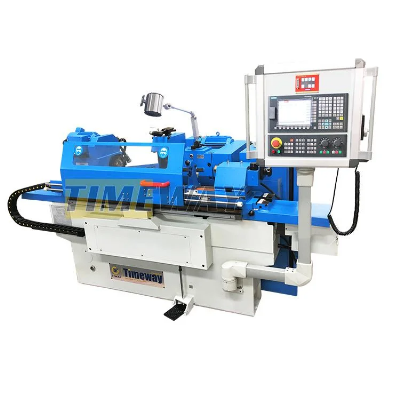

Cylindrical Grinding Machine with Siemens CNC System

Cylindrical Grinding MachineProduct DescriptionThe machine tool standard adopts German SIEMENS CNC system, and the executive system is driven by the CNC servo driver and servo motor. Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.CNC control system with the function of wheel dressing and compensation automatically.Standard Accessories:Semi isolated table shield, Coolant tank, Wheel dresser, 2 points steady rest (Standard dimension), wheel flange Wheel, Wheel extractor, Wheel balancing arbor, Center points, 3-jaw chuck, Siemens electrical equipment & delta transducer, Operation Manual (English edition).Optional Accessories:Full-closed safety cover, Coolant tank with magnetic separator, Coolant tank with paper filter, Machine safety relay protection.SpecificationsUnitGK-200Hx500GK-200Hx800Dia. to be groundmm8~2008~200Max. length to be groundmm500800Center heightmm135135Distance between centersmm550850Headstock center-MT4MT4Tailstock center-MT4MT4Max. workpiece weight to be groundkg5050Wheel sizemmФ400x50xФ203Ф400x50xФ203Wheel peripheral speedm/s38 (hydrodynamic-hydrostatic 45m/s)38 (hydrodynamic-hydrostatic 45m/s)Wheel spindle rotation speedrpm21302130Min. pulse amount in X-axismm0.0010.001Min. pulse amount in Z-axismm0.0010.001Total motor powerkw10.82510.825Longitudinal servo motorkw1.6 (6N.m)1.6 (6N.m)Transverse servo motorkw1.6 (6N.m)1.6 (6N.m)Roundnessum1.51.5Surface roughnessumRa0.32Ra0.32Unifomity of dia.in longitudinal sectionum55Detailed Photos   After Sales Service1. Free replacing parts available in the warranty period.    Cost price replacing parts available beyond the warranty period.  2. Quick action and reply for the technical questions at any time in the whole life of the    machine.3. Overseas after service center available in some region.4. Engineer overseas service available on the requirement of customer    (relative cost born by customer).   Company Profile "TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years. Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines. Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related accessories&tools, etc.  Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.  So far, we have received many customers from abroad, and they are all very satisfied with our company and productsThe following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view Conventional LatheCNC LatheCNC Machining CenterCNC Milling MachineGrinding MachineMilling MachineSpecial Use LatheBoring Machine FAQ Q: Why choose TIMEWAY MACHINE?A: 1 . High quality with competitive price;2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine./* March 10, 2023 17:59:20 */!function(){function s(e,
