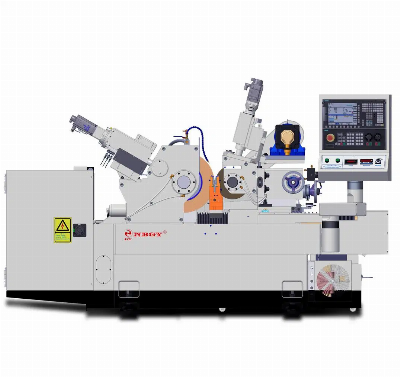

Five Axis Numerical Control Centerless Grinding Machine

About the Centerless Grinding MachinineWhat is CNC centerless grinder?CNC centerless grinding machine is an efficient grinding machine, it adopts computer control system, can automatically calculate the size of the material before processing, need to grind the shape, according to these parameters control the grinding process, in a short time to complete the precise grinding operation. Centerless grinder is a machine tool that uses abrasive or grinding wheel to cut the workpiece surface.Specifiation of this 455B Centerless Grinding Standard Machine  Model: GY455BHydraulic pump drive motor: 2HP(0.75w)Adjustment wheel rotation Angle:plus 6 ~ minus 6 °Grinding range (diameter):Ø1mm~60mmCooling pump drive motor:1/4HPMechanical dimensions (L * W * H):3350x2100x1763mmGrinding wheel size:Ø455x205x Ø228.6mmCalibration of adjustment wheel feeding hand wheel:4mm/round ; 0.05mm/scalePacking size (L* W * H): 3556x2300x1850mmAdjustment wheel size:Ø225x205x Ø111.2mmCalibration of adjustment wheel fine tuning hand wheel:0.114mm/round;0.001mm/scaleMachine weight: 3623kgGrinding wheel speed:1460R.P.M./minTable setting minimum servo feed:0.0002mmPacking weight:3823kgAdjustment wheel rotation speed:0~250RPM./minGrinding wheel servo modified minimum servo feed:0.001mm  Grinding wheel drive motor: 11.0kwCalibration of adjustment whee modified feeding hand wheel:2.0mm/round ; 0.01mm/scale  Adjustment wheel drive motor:3.0kwAdjustment wheel tilt Angle: Plus 5 ~ minus 3 °  About CCMS Industrial/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
