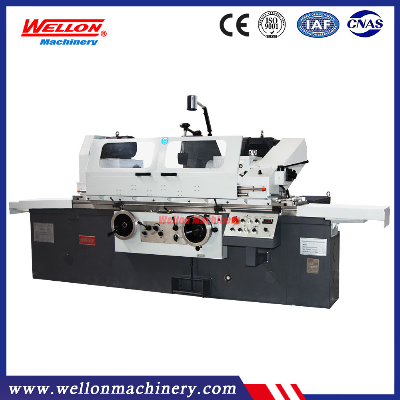

Cylindrical Grinding Machine (M1332Bx1000 / M1332Bx1500 / M1332Bx2000) Cylindrical Grinder

Product Description:Performence Features:Suitable for grinding IT6-IT5 accuracy cylindrical conical partsCan choose hydraulic stepless or hand wheel transmission to achieve worktable longitudinal movementAdopt orifice compensated unloading form on worktable lubricationWith hydraulic fast feed,manual micro feed and wheel automatic cycle feed function on worktable cross travelWorkpiece,External Grinding wheel,Oil pump,and Coolant pump are driven by independent motorsAdopt 2 sets of 4 bearing bushes compose the wheel spindle bearing.Increase the grinding carriage spindle diameter and motor power.Improve the grinding efficiencyWheel dresser mounted on the tailstock,and tailstock equipped with hydraulic center back deviceAdopt interlocking mechanism among electric,hydraulic and mechanical part,ensure safe operation.Main Technical parameter:ModelUnitM1332Bx1000M1332Bx1500M1332Bx2000O.D Dia Scopemm8-3208-3208-320Distance Between Top Centermm100015002000Center Heightmm180180180O.D Max Length Grindmm100015002000Max.weight of workpieceKG150150150Work head Center Taper(MT)MTMT5MT5MT5Work head Spindle Speedr/min29-26029-26029-260Wheel Spindle Speedr/mm110011001100Wheel Size(O.DxWxI.D)mm600x75x305600x75x305600x75x305Peripheral Velocitym/s353535Hand Wheel Feed Per Revolutionmm 6 6 6Max Swiveling Angle of Table -3~+7°-3~+6°-3~+5°Longitudinal Speed of Tablem/min0.1~40.1~40.1~4Tailstock Center TaperMTMT4MT4MT4Quill Travelmm303030Wheel head Motor PowerKW111111Work head Motor PowerKW0.75/1.50.75/1.50.75/1.5Machine WeightKG400046006600Machine Sizecm360x180x150460x180x150560x180x150Working AccuracyRoundnessμm1.51.51.5Uniformly of Inner Dia Longitudinal Sectionμm888Surface RoughnessμmRa 0.6Ra 0.6Ra 0.6Surface Wavinessμm111Standard accessories:3 jaw chuckBalance arborMeasuring bridge plateWheel flangeOpen type steady restAlloy centersExtent arborDog poleDog armTable swivel wrenchCoolant tankStandard wheelsWheel extractorWork lampSeal ringsHigh speed strapMultiple V beltOptional accessories:Wheel balancing standMagnetic separatorClose type steady restEnd wheel dresserRadial wheel dresser/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
