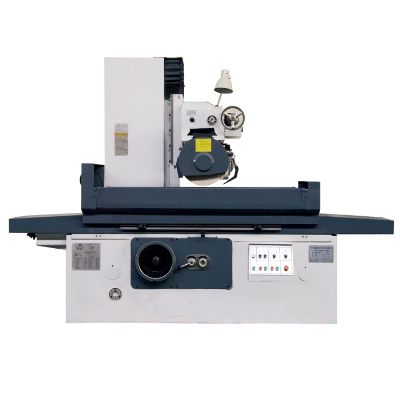

Vertical Metal Flat Plane Grinder Surface Grinding Machine

Vertical metal flat plane grinder surface grinding machine 1. ISO certification 2. Taiwan cross leadscrew 3. Easy operation 4. Perfect painting 5. Siemens electric elements Heavy Surface Grinder Machine M7163 This series surface grinder is not only applied to the surface grinding of steel piece, casting piece and other metal material, but also can handle the machining of the slots and flanch surface. Heavy surface grinder machine M7163 ACCESSORIES Standard accessories: Diamond dresser base, Wheel exactor, Balancing arbor, Foundation bolts and wedges, Brush, Electric magnetic chuck. Optional accessories: Wheel balancing stand, Diamond pen, Demagnetizer. Heavy surface grinder machine M7163 surface grinder with good control box and the electrical parts adopted SIEMENS and other famous brand. The circuit is well designed insure more safety. Heavy surface grinder machine M7163 WORKSHOP The accuracy of this machine is 0.005mm and it can meet the routine machining job requirement. The worktable longitudinal movement is driven by the vane pump, so that to make the movement stable and fluently with low noise. The wheel head adopts the bearing bush structure, so that to handle the heavy duty machining job. The machine gets the hydraulic auto feed and manual feed in cross feed unit, which is very convenient for operation. The wheel head vertical movement is controlled manually, it also equips with the rapid elevating unit to reduce the labor intensity and improve the working efficiency. The machine not only works stable and performance reliable, but also gets the advantages of low noise, accuracy stable and easy operation. ModelUnitM7130M7140AM7140AM7140AM7150AM7150AM7150AM7163M7163M7163x1600x2200x1000x1600x2200x1250x1600x2200Worktable size(WxL)Mm300x1000400x1000400x1600400x2200500x1000500x1600500x2200630x1250630x1600630x2200Max matching dimension(W x L)Mm300x1000400x1000400x1600400x2200500x1000500x1600500x2200630x1250630x1600630x2200Max distance between spindle centerMm575600700 lineand worktable surfaceLongitudinal moving  speed of worktablem/min5//253//27T-slot number x WMm3x183x22Wheel  headContinuousm/min0.5-4.5feed speedCross  movingIntermittentMm/t3//30feed speed Hand wheelMm/gra------0.020.01feedVertical  RapidMm/min 400Movingspeedof wheel  headHand wheelMm/.gra0.005feedWheel  HeadPowerKw5.57.57.5motorRotationRpm1440speedTotal powerKw8.631113.512.2513.7515.7513.7515.75Max loading capacityKg4706201000138070012401410101012901780of worktable(with chuck)Chuck size(WxL)Mm300x680400x1000400x800400x1000500x1000500x800500x1000630x1250630x800630x1000x1x1x2x2x1x2x2x1x2x2Wheel sizeMm350x40400x40400x40x203(ODxWxID)x127x127MachineCm286x154311x182494x182674x182311x190514x190674x190399x220514x220674x220dimension(LxWxH)x203x223x223x223x242x242x242x242x242x242Machine Weightt3.495.016.517.65.787.328.786.867.859.65/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
