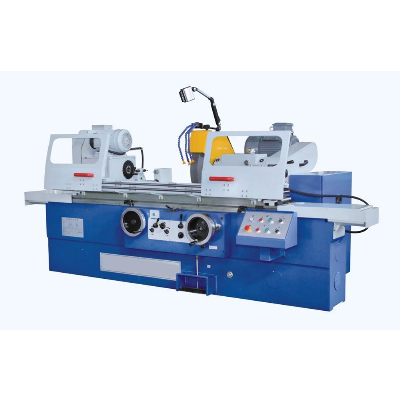

M1332b Mc1332b Cylindrical Grinding Machine

Product DescriptionM1332B cylindrical grinding machine is designed on thebasis of M1332A cylindrical grinding machine. It is suitablefor grinding cylindrical or conical parts, for its accuracy IT6-IT5.· Worktable longitudinal travel driven by hydraulic atinfinitely-variable-speed, or driven by handwheel.Lubrication for hole throttle unloading form.·Wheelhead cross travel provided with hydraulic rapidadvance and withdrawal, manual microfeed. And feedgrinding wheel automatic cycle function.·Workpiece, wheel, oil pump and coolant pump respectivelydriven by their individual motor.·Two sets of silding bearing consisting of four-shoes used aswheel spindle bearings. The spindle bold, increased motor,high grinding efficiency.· Wheel dresser mounted on the tailstock, and hydraulictailstock top bavk device.·The machine with the moving parts of electrical, hydraulicchain, safe and reliable operation.MC1332B Series table moves using hydrostatic guideway. Product Parameters  Descriptionunit M1332Bx1000/1500/2000/3000MC1332Bx2000/3000Grinding length mm1000/1500/2000/30002000/3000Grinding diameter mm φ8-φ320φ8- φ320Center height mm180180Max. workpiece weightkg150500Worktable speedm/min0.1~40.1~4Wheel peripheral velocitym/s3838Max.travel of worktablemm1100/1600/2100/31002100/3100Swivel range of worktable -3-+7/-3+6°-2~+5/-2~+3%-2~+5°/-2~+3°External wheel sizemmφ600×75×φ305φ600×75×φ305Spindle speed of workheadr/min 26,52,90,130,180,260Grinding spindle speedr/min11001100Headstock topmorseN0.5N0.5Tailstock topmorseN0.4/N0.4/N0.5/N0.5N0.5Rapid advance and withdrawalamount mm5050Wheelhead displacement per revof handwheel     coarse/fine mm2/0.52/0.5Wheelhead displacement per divof handwheel  coarse/ fine mm0.01/0.00250.01/0.0025Total motor powerkw14.2714.27Overall dimensions(L×W×H) mm(3605/4605/5605/7605)×1810×1515(5605/7605)×1810×1515Machine weightkg4000/4600/6600/86006600/8600Detailed Photos/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
