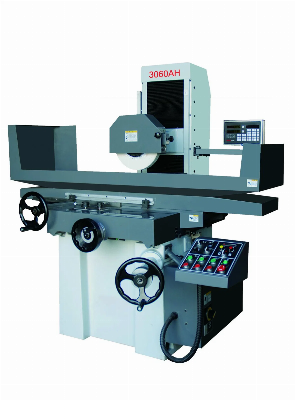

High Quality Universal Hydraulic Surface Grinder Tat3060ah

High quality universal hydraulic surface grinder TAT3060AH The product is a carriage moving surface grinder, which mainly uses the periphery of the grinding wheel to grind the plane of the workpiece and the end face of the grinding wheel to grind the vertical surface of the workpiece.1. The precision of machining parts is high and the quality is stable. The positioning precision and repeated positioning precision of surface grinder  are very high.2. High degree of automation.3. Dimension marking should conform to the characteristics of grinding machine.4.The positioning datum is reliable. High quality universal hydraulic surface grinder TAT3060AH ItemSpecificationsTable Size600×300mmMax Vertical Travel of Long660mmMax Vertical Travel of Cross340mmMax Vertical Travel of Grinding Head540mmMax Loading Capacity420KgNumber of T-slot14X1mm/nTable Speed5-23m/minLongitudinal Handwheel Movement0.02mm/grid  5mm/rLongitudinal Automatic Handwheel Movement0.1-8mmLongitudinal Movement Rapid Speed50HZ  790mm/minGrinding Wheel Dim350X40X127mmSmindle Speed1450r/minMax Up and Down Movement432mmUp and Down Handwheel Movement Up and Down Rapid Movement0.001/grid  0.2mm/r630mm/minSpeed Spindle Motor5.5KWUp and Down Motor80WLongitudinal Motor40WOil Pump Motor2.2KWMachine Height1900mmArea covered2200X3050mmNet Weight1750kg    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
