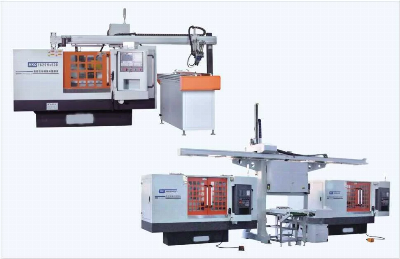

Mkq1632b, Automatic Cutting Nc Cylindrical Grinder

Product DescriptionMain functions and features• Automatic loading and unloading CNC cylindrical gr inding machine,suitable for grinding large quantities of parts,one person can easily to operate more than5 machines, with high cost performance.• The electrical system is controlled by SYNTECsystem intelligent touch panel and keyboard screen .• Man-machine dialogue operation, parameter tables and picture type of programming.• Making operationmore simple andconvenient.• Headstock motor senvo motor,three point contact workpiece clamping for independent research and development of floating device.• The system uses double channel control path, enabl ingsimultaneous• Grinding products and robotic handling products, im prove product cycle times.• Machine automatic manipulator can up and down from the left and right sides in and out of the machine tool,the user put the machine tool is more flexible and convenient.And machine tool can put several machines together,form automatic production lines,greatly improve production efficiency,saving valuable prodrction site.Product ParametersDescription(unit)MKQ1620H×500MKQ1632B×500Dia to be ground(mm)φ8- φ200φ8- φ320Max.length to be guound(mm)500500Center heighe(mm)135180Distance between centers(mm)500500Headstock center()4#5#Tailstock center()4#4#Max.workpiece weight to begrounnd (kg)55Wheel size(mm)φ500×φ50xφ203φ600×75×φ305Wheel peripheral speed(m/s)45()45()Wheel spindle rotation speed(r/min)17201433XMin.pulse amount in X-axis(mm)0.0010.001ZMin.pulse amount in X-axis(mm)0.0010.001Total motor power(kw)1522Long it udingal servo motor(kw)2.4(11.5Nm)3.1(15Nm)Traverse servo motor(kw)2.4(11.5Nm)3.1(15Nm)Detailed Photos/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
