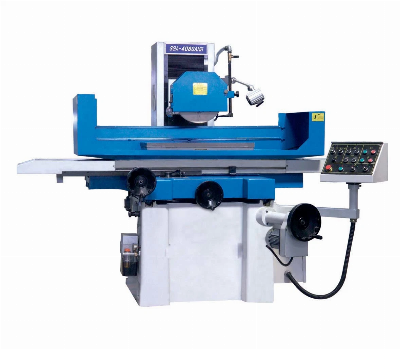

Hydraulic Surface Grinding Grinder Machine Price

Hydraulic Surface Grinding Grinder Machine Price Specifications1.ISO certification2.Taiwan cross leadscrew3.Easy operation4.Perfect painting5.Siemens electric elements  The slide way with the TF wearable belt, and have been precision manual scraped. Only by this, the machine have high accuracy and smooth moving and long working life.Double wall structure casting is adopted on Column. And between outside and inside wall gets strengthen rib.Siemens PLC (only for AHD model)For AHD model, the spindle elevating motor adopt Servo motor we choose Schneider and Delta, and controlled by Siemens PLC. All the electro parts adopted world brand or Chinese famous brand, such as the Siemens, Schneider, Tend, etc. The vertical lift lead screw is made in Taiwan, Name:SHYH MINMACHINERYThe Cross feed screw is Ball screw, make sure the smooth moving. AC motor drove the cross screw by timing belt then realize auto intermittent feed.The spindle Motor, Y axis drove Motor, and other important parts, Are all made by famous specialty manufacturer, SHVH MIN, Juli, Shuanglin etc..The operator can set the Auto working (feed rate and times, spark grinding times by the control panel. When finish grinding, the spindle will lift up automatically.Standard accessories: Coolant tank,Standard electro magnetic chuck, Balancing arbor, wheel flange, Wheel extractor,Leveling wedge and bolt, Tool box and tools, Standard grinding wheel, Working lamp, Wheel dresser stand (without diamond pen), Build in electro magnetic chuck controller, PLC auto grinding controller (only for AHD models) MODELUnitSGA2050AHSGA2550AHSGA2050AHRSGA2550AHRSGA2050AHDSGA2550AHDTable size(W x L)mm200x460200x500Max longitudinal travelmm510560Max cross travelmm238275Max distance from spindle center to tablemm450450Electro magnetic chuck sizemm200x460250x500Speed of table longitudinal movementm/min7-23Table transverse movementAuto feedmm/min0.1-8Rapid speedmm/min990Feed of handwheelMm/div0.02Wheelhead vertical movementAuto feedmm0.005/0.001/0.002/0.003/0.004/0.005 for AHDRapid speedMm/min460 for AHDFeed of handwheelMm/div0.005 Grinding wheel speedrpm2850(50HZ)/3450(60HZ)gridning wheel Sizemm200x20x31.75Spindle motorkw1.52.2hydraulic motorkw0.75cooling motorkw0.04elevating motorkw0.25 or AHR, 0.5 for AHDMax loading capacity of tableKg120180Floor space(LxW)mm2050x14002300x1600Gross weightkg16001800Package dimensions(L x W x H)mm1900x1720x21752000x2100x2175 MODELUnitSGA3063AHSGA4080AHSGA40100AHSGA3063AHRSGA4080AHRSGA40100AHRSGA3063AHDSGA4080AHDSGA40100AHDTable size(W x L)mm305x635406x813406x1020Max longitudinal travelmm7659101130Max cross travelmm340450450Max distance from spindle center to tablemm580580580Electro magnetic chuck sizemm300x600400x800400x1000Speed of table longitudinal movementm/min5-25Table transverse movementAuto feedmm/min0.1-8Rapid speedmm/min990Feed of handwheelMm/div0.02Wheelhead vertical movementAuto feedmm0.005-0.05(only for AHD)Rapid speedMm/min650 for AHR, 480 for AHDFeed of handwheelMm/div0.005 Grinding wheel speedrpm1450(50Hz)  1750(60Hz)gridning wheel Sizemm350x40x127Spindle motorkw4Max loading capacity of tableKg270500600Floor space(LxW)mm2900x2200x19003600x240x019004400x2400x1900Gross weightkg280034003700Package dimensions(L x W x H)mm2350x2220x22102850x2270x22102950x2270x2210   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
