Multi-Functional Universal Salt Crushing Machine

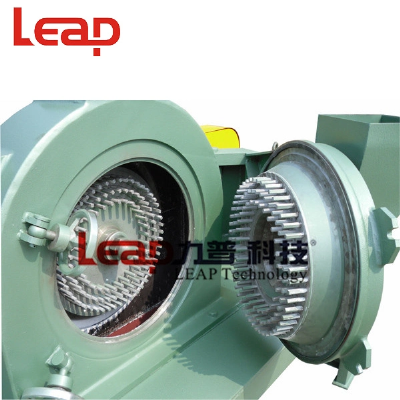

Multi-functional Universal Salt Crushing machineOur Main Products Principle and structure It's main parts are housing, door, rotary disc, static disc, shaft, air sealing. There is a rubber ring between door and housing for prevent power out.It's milling zone is consist of rotary pins and static pins. Particles hit these pins and get split. Particles can get abundant times of hit because there are several rows of pins. The rotary pins can suck airs to reduce the heat generated by friction. There is a air sealing device to protect bearing keep clean.Work IncludedDesign and supply of a BXM series Complete Milling system for the production .This includes design and supply of all ancillary items necessary for proper operation of the offered equipment including, - Feed Bin and Feed Screw- BXM Pulverizing Mill- Cyclones- Bag filters/pulse dust collector with rotary valve- Draft Fan - Pipes /bracket- One product collection systems with rotary valve- Electrical Cabinet  Technical ParametersModelBXM-200BXM-400BXM-630BXM-800ParameterPower(kw)4~5.515~2230~3745~55Velocity(r/min)9000468029102300Fineness(μm)3000~30Outline dimensions(mm)(L×W×H)1000×700×10001700×850×14252700×1200×21502800×1300×2300Net Weight(kg)30080015002200   Our CertificatesRelated Engineering CasesTechnical supportUpon receiving the deposit, we will offer the following technical services: 1. Design for your production line flow and equipment layout, free of charge; 2. Provide foundation drawings of customer-ordered grinding mills and drawings of related parts, etc; 3. Technical parameters of peripheral equipment will be supplied; 4. Free technical suggestions on adjusting of equipment layout and application. 5. Equipment upgrading (customers need to pay the cost); Quality assurance 1. Strictly conforming to ISO9001-2000 quality management system; 2. Strict control from purchasing inspection, process inspection to final proofing; 3. Established several QC departments to execute quality control regulations; 4. Detailed quality control examples: (1) Complete files for quality control and quality feedback; (2) Strict inspection for the components of our grinding mills, to assure products free of damage and avoid rust-eaten and paint peeling off later on. (3) Only qualified components will be assembled and total equipment must be inspected completely before sale.After sale service 1. We will send our technician to the site for guiding equipment installation and commissioning. 2. During the installation and commissioning, we offer operator training service. 3. The quality assurance date is one year after commissioning. And after that, we will collect the cost if provide repairing for your equipment. 4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected). 5. We offer the components with favorable price and perdurable maintenance. 6. If equipment repairing is needed after quality assurance date is expired, we will collect maintenance cost./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
