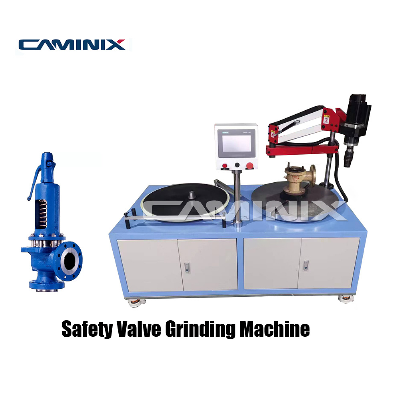

Stationary Valve Grinding & Lapping Machine for Safety Relief Valve Calibration

W200 Safety Valve Grinding Machine DN25-DN200Brief Introduction of Safety Valve Grinding MachineThe fully automatic dynamic grinding machine for safety valves is suitable for grinding the seats and discs of various flat surface metal sealing safety valves.Equipment characteristics1. Desktop structure, beautiful and generous appearance, stable and durable.2. Simple operation and high grinding efficiency.3. Two station grinding is divided into two parts: valve seat grinding and valve disc grinding.4. After setting the working parameters, there is no need for operators to be on duty during the grinding process.5. Valve seat grinding and valve disc grinding can work independently at the same time.6. The valve seat grinding adopts the valve seat rotation method, and the positive and negative rotation can be set.7. The grinding head and the mechanical arm can move up and down, left and right at will.8. The positive and negative rotation of the valve disc grinding plate can be set, and the valve disc moves on the grinding plate. With the grinding baffle, the movement trajectory can be adjusted, and multiple small valve discs can be ground simultaneously.9. The grinding motor adopts a servo motor and a stepless speed controller. The grinding speed can be set within a range.Technical parameters  Rough grinding disc diameter300Fine grinding disc diameter300Safety Valve Grinding diameter DN25~DN200mm(larger size can be customized if necessary)Grinding stationDual stationGrinding paste200 400 600 800 2000Power supplyAC220V, 50HZMinimum grinding height1mmSpeed regulation range0~50R/MinWorkpiece thickness deviation± 0.05mmGrinding roughness of workpieceRa0.8Workpiece parallelism0.03mmMachine Dimension1600*800*1600 (mm)Net Weight400KGPlease contact Caminix for more information.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
