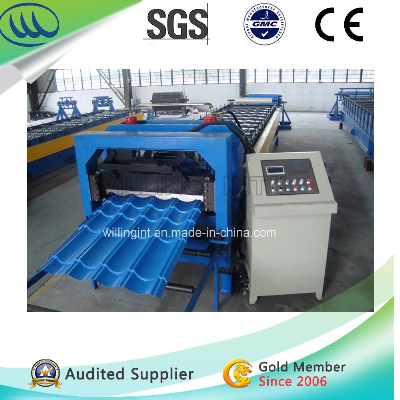

PPGI PPGL Glazed Steel Roof Tile Roll Forming Machine Hangzhou

 PPGI PPGL Glazed Steel Roof Tile Roll Forming Machine HangzhouStandard Equipment of Machine  1)Manual Uncoiler1set2)Infeed Guide1set3)Roll Forming Station1set4)Post-cut Equipment1set5)Hydraulic Station1pc6)PLC Control Console1pc7)Product Support Table2pcs8)Spare Parts1boxComponents for the Machine:The roll forming machine includes manual uncoiler unit, infeed guide, fixed position driven forming stations, pressing die, cutting equipment, hydraulic station, PLC console and manual unload product run out table.  Material specificationAluminum, alu-zinc, galvanized and pre-painted galvanized steel.Thickness0.3-0.7mm.(perfect is 0.4mm-0.6mm)Main motor power5.5 kw.Hydraulic station power5.5kw.Feeding width1000mm.Cover width828mmYield stress235Mpa (33KSI) ~ 345Mpa (50KSI).Roll forming Speed15-18 m/minCutting Tolerance+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm
