Single Point Diamond Dresser Wheel Dresser Cutter

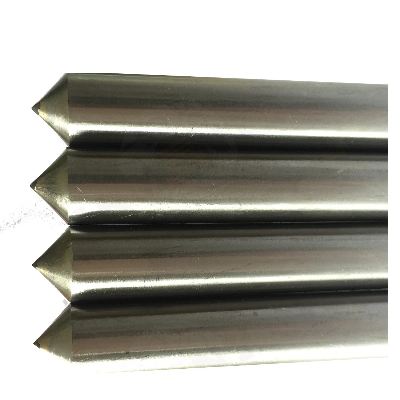

Product DescriptionDIAMOND DRESSER with high quality natural diamond raw materialSingle Point Diamond Dresser specially selected natural diamond particle are used, holding a perfectly high quality diamond welded into a point of handle, using the sharp-angled of diamond to turing grinding wheel according to natural grain of diamond,  it exert the diamond surface's hardness and wear-resisting property. It is suitable for the of grinding wheels of precision truing.also can turing the general grinding wheel.It offers different grades of diamond dresser.The proper selection of single point diamond dresser depends on the dimension of grind hardness.And the price depends on the grade and weight fo diamond.Also we can make the products according to customer's drawing,samples or requestment.Purpose: Obtain accurate grinding wheel surface and shape; remove passivated and uneven grinding wheel surface layer, and restore sharp and flat grinding wheel surfaceScope of application: In addition to diamond, cubic boron nitride grinding wheels, all other types of grinding wheels for ceramics, rubber, resin and clay.Factors affecting grinding wheel dressing:1. Diamond quality, size and wear resistance are selected according to the sand model and the accuracy requirements of the workpiece to be ground2. The coolant is turned on, and there must be a certain pressure and flow;3. There is a certain positional relationship between the installation of the dressing tool and the grinding wheel stroke. There should be no gap between the installation handle and the stroke guide rail.4. The feed rate and speed are confirmed according to the model of the dressing tool and the workpiece to be groundProduct ParametersProduct Title: High Quality Natural Diamond DresserProduct alias: natural diamond pen, natural diamond grinding wheel cutter, diamond wheel knifeProduct model: H130Material: Natural diamondDiamond exposed height: 2.6mmEffective diamond height: 2.4mmApplication: special for roll mill in copper industry and aluminum industryGrinding wheel size: 46-60 meshGrinding method: semi-finish grindingWorkpiece roughness range: RA6-10Handle body: head 14*L20 rear12*L60Products can be customizedDetailed PhotosPackaging & ShippingCompany ProfileHenan Harmony Industry Diamond Co., Ltd. (H.I.D.) is mainly specialized in manufacturing and supplying Industrial Diamonds, CBN and its series of products in China. We insist on research and development of precision grinding and polishing diamond materials as well as its end products.For last years, the core business has remained the synthesis and processing of synthetic diamond super materials, a term which includes manufactured synthetic diamond. While synthetic diamond is well known as the planet's hardest known material, it has many extreme properties and is one of the most useful and remarkable materials.H.I.D.'s mission is to deliver premium performance for end users through innovative solutions. H.I.D. focuses on close strategic development partnerships with customers to deliver customized, innovative high-performance products. The business consistently strives to provide excellent customer service and continuous productivity enhancementIndustrial diamonds business encompasses high-quality powder super hard materials and advanced materials.  We use high pressure high temperature (HPHT) synthesis to manufacture synthetic diamond. This super material is used in applications including cutting, grinding, drilling, shearing and polishing. It has driven demand in industrial sectors as drivers as automotive, aerospace, oil & gas drilling, mining, electronics, road maintenance, stone and construction, and wood-working. H.I.D. is an organization that is committed to the highest ethical standards and operating its business fairly, honestly and openly. This commitment gives our business partners confidence in the way we act. H.I.D. takes a zero-tolerance approach to corruption, for its staff and business partners/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
