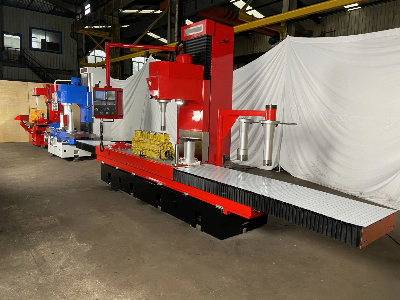

Vertical Fine Boring-Milling-Grinding Machine (TXM250)

Cylinder boring / grinding &milling machine_TXM250A Features The speed of spindle turning and table moving can be enacted freely in the area of parameter Spindle feeding (spindle Z) is auto pitched, the precision can be to 0.1mm Longitudingal and cross movement of table Complete set of accessories of boring, milling, drilling & reaming and easy exchange Spindle fast centering device Tool measuring device Boring depth control device Table with digital readout for jig borer machine ModelTXM170TXM200ATXM250A  Max. boring diameter Φ 170mmΦ 200mmΦ 250mm  Max. boring depth 400mm500mm500mm  Max. grinding area480x1000mm  Max. milling area400x1000mm  Max. drilling & reaming diameterΦ 30mm  Spindle speed 120 - 1200r/min  Feeding of the spindle 10 - 700 mm/min  Rapid moving speed of the spindle 10 - 700 mm/min  Spindle travel 760mm  Distance between spindle end face and table 20-720mm  Distance between spindle axis365mmand carriage vertical plane Feed of the table longitudinal 32 - 1350mm/minRapid moving speed of the table32 - 1350mm/minlongitudinal travel Table longitudinal travel1500mm  Table latitudinal travel200mmTable dimensions (WxL)500x1250mm500x1500mm  Main motor 4 - 5.5Kw  Boring roughnessRa 1.6  Milling roughnessRa 3.2  Grinding roughnessRa 0.8  Overall dimension of the machine (L× W× H) 2600x1630x2300mmPacking dimensions (L× W× H) 1900x2250x2280mmN. W. /G. W. (kg)3300/36003500/3800/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
