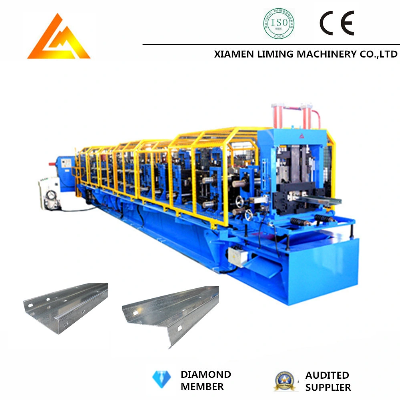

High Speed Auto Interchangeable CZ Purlin Roll Forming Machine

CZ Interchangable Steel Purlin Roll Forming Machine With PLC Control SystemADVANTAGES: 1. PLC CONTROL C/Z INTERCHANGEABLE, EASY ACESS, SIMPLE TO LEARN, LOWERS LABLE COST.PRODUCE DIFFERENT SIZE PURLIN WITHOUT MANUAL CHANGING ROLLERS OR SPACERS.2. FORMING WITH PRE STRENTHENING, TO MAKE SURE THE PERFECT SHAPE3. INFINITE SIZE CUTTER THAT CHAGES SIZES WITH A FEW SPIN.4. EASY OPERATION, LOW MAINTENANCE COST.5. WITH PRE-CUT SYSTEM SAVES MATERIAL.6. C/Z INTERCHANGED WITH ONE BOTTON     General Parameter1ItemParameters2SizeC80-C250/Z100-Z3003MaterialGalvanized Sheet4Thickness1.5-3.0 mm5Yield Strength235/345 MPa6Feed WidthAccording to the profile7Max. Line Speed Of Roll FormerApprox.30 m/min8Roll Stages20 Stages9Main Motor Power30 KW (Servo Motor)10Hydraulic Group Power15 KW11Total Power45 KW12Electric StandardAC380V,50Hz,3Ph13Machine Dimensions11840*1840*222014Total WeightApprox. 20T  Machine Components   1. Hydraulic Pre-cutting (used for cutting coil head and coil tail)     Function:Cut material head and tail to reduce waste.     Blade: scissor cutting structure, stable and convenient feeding.     Material: Cr12mov, Heat Treatment, and Shear all the way up to 3.0mm Steel Plate.2. Pre-Leveling DeviceThe In-feed Section of the machine allows for variations in sheet width.Pre-Level Device with 4 over 3 shafts to remove the Coil-set.Making sure the material is flat enough to be formed (or punched).3. HYDRAULIC PRE-SHEARING & Pre-punching devicePunching die material: Cr12 with Heat Treatment, more reliable, higher hardness. On line Die-set LEAD screw drive for different web punching sizes, and the number of punching cylinders could be customized upon client needs(CUSTOMIZABLE).Pre-shearing is used when changing the coil, manual control, only for cutting the first piece and the end piece of the sheetPre-cutting device, PLC control, purlin has bit open-up in both ends; panel length min 2.5m.4. Cold Rolling MillsHigh Precision Servo Motor is adopted to ensure the punching accuracy.One-button control to swap from C to Z, Z to C.Changing WEB and FLANGE with auto PLC control,any within range.Shaft Diameter:Φ75/95 mm .Raw Materials: Cr12, Heat Treatment.   5.Hydraulic Post CuttingScrew adjustment to realize rapid switching of WEB size, to achieve different specifications of C/Z purlin shearing.The cutting tool material is made of Cr12MoV after heat treatment, with high strength, which can better guarantee the cutting effect and the durability of the cutting tool. Blanking size up to 8mm, Minimize the material wastes.6.Hydraulic POWER PACK (PUMP MOTOR=15KW, With Air Cooling Device)     7.PLC Control System    Fully automatic conversion control, Size: C to Z or Z to CSpecification: C100-C300/Z120-Z300Fully automatic production: QUANTITY/ PRODUCT LENGTH/PUNCHING POSITION/ (UPTO 100 ORDER MEMORIES).PLC(Siemens), Touch Screen (Siemens), Encoder (Omron), etc.Cut-to-length-tolerance≤±1mm   After-Sale Service In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.Installation: If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians. Terms Of TradePackage & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing. Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
