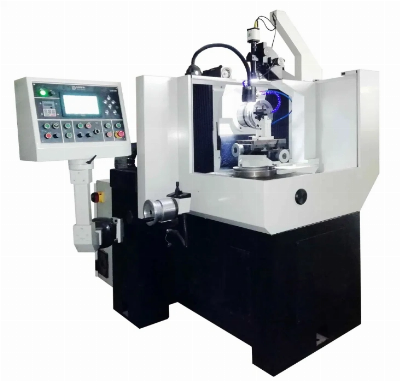

Bt-150n CNC PCD&PCBN Tool Grinder

Product Description3-Axis CNC PCD&PCBN Tool Grinder Cutter Grinding MachineBT-150N 3-Axis CNC PCD&PCBN tool grinder is made of grinding wheeloscillation axis(X-axis), rotation axis in the horizontal plane(C-axis), workingpiece feeding axis(Y-axis). Working piece feeding axis(Y-axis) is equippedwith linear scale, and the closed loop position feedback is used to ensure theprecision of micron level grinding. The tool grinder is reliable in performanceand it is suitable for massive production of carbide inserts, PCD and CBNinserts. Once centering is finished, grinding will be done automatically.Features:1. Mechanical Structure: The base of machine is madeof solid casting with high quality. It can meet grinding requirements of any hardmaterial. The machine has a grinding fluid shield to ensure that the grindingfluid does not splash everywhere. The optical component and CCDcamera are properly protected from splash by metal cover. The machine isequipped with lights and the bedside lamp inside. Cross work table is adoptedwith precision guide rail and two tightening screw. This eliminates the gap, canwithstand greater grinding resistance without cutter back-off.2. Grinding Spindle: With high precision and frequency control speed, thespindle power is 5Kw, max speed is 8000r/min. The inner of spindleis cooled by recycling water. The radial run-out is 0.002mm and axial run-outis 0.003mm.3. Machine tool guide way: The guide way with high precision roller greatlyenhances the rigidity, precision and durability of the machine.4. Grinding software: our company developed the grinding software and canset various kinds of grinding parameters.5. Reciprocal pendulum mechanism of grinding head: The grinding head swingis driven by the servo motor, and the oscillation frequency in 0-50 / min,adjustable swing between 0 to 120 mm. The grinding wheel is with uniformconsumption and timely self sharpening, ensure the grinding precision androughness. The grinding wheel oscillation is controlled by PLC program andmove very smoothly with speed optimization. Oscillation length, position andfrequency can be set in the program.6. Angle encoder: after cutting tool detection, it can accurately restore thegrinding position of the cutter, and avoid multiple grinding tool does not reset,digital encoder angle resolution is up to 1'.7. Grinding wheel spindle radial locking technology: the technology makes thetwo arc guide rail hold tight in concave and convex, with the springcompression, adjusting angle automatically in the control panel through themotor.8. Fixture: this machine is equipped with positioning fixture. It need not toadjust the CCD camera position in the grinding of different thickness tool. Sothe work efficiency is improved.9. Lubrication system: intermittent automatic lubrication system, users can settime and intermittent for oil, ensure the service life of the screw.welcome to inquiry!/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
