DTH Button Bits and Mining Drill Bits Diamond Grinding Cup Pins

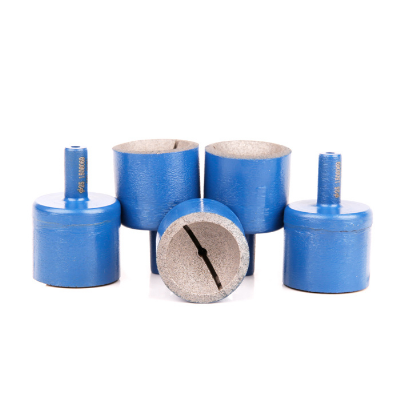

DTH Button Bits and Mining Drill Bits Diamond Grinding Cup Pins   Our factory specializing in producing diamond Button Bits grinding cups. It's a perfect tool for grinding your broken button bits, to prolong it's lifespan. Standard AIR / WATER ways on grinding cups 1). Single-water way is suitable for all insert shapes and all types of grinding machines.2). The 3-water ways are standard on all grinding cups larger than 14mm. Gives a better redressing result, longer life of the grinding cup. Model and SpecificationThere are different models for your choice:8mm shank model,9mm shank model,internal hex drive model, etc..Our grinding cup can be used for grinding 7mm-25mm button size. Other sizes available on request. These grinding cups can be used for grinding both the bit button and body steel in one operation.The combination grinding pin benefits from a specially developed grinding material capable of grinding both carbide and steel at a regular and consistent rate.For bit's button shapeFor bit's button size (mm)spherical buttons ballistic buttons6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25bit's body steel removal7-8 9-10 11-12 13-14 15-16 17-18 19-20 The grinding pins specially for grinding bits body steel   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
