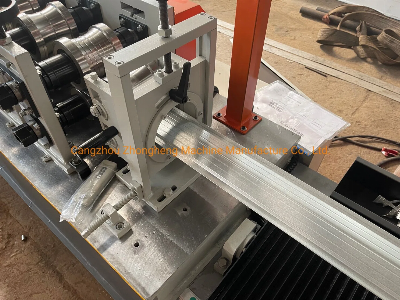

High Speed Metal Palisade Fence Roll Forming Making Machine

High speed Metal Palisade Fence Roll Forming Making Machine Metal fence making machine roll forming machineMaterial                                       Effective width:About 25 mm  Material Thickness:0.3-0.6mm                                   Applicable material:Galvanized Steel(GI),Hot Roll Steel(HRC),With yield strength G235-390MpaWork FollowDecoiler→Feeding Guide Device→Rolling Forming System→Hydraulic Not Stop Cutting And Punching Device→ Exit RackMachine Components Manual Decoiler  1 Set Un-powered, Manually control steel coil inner bore shrinkage and stopMax Feeding width: 500mm,coil ID range ф460-520mmCapacity:Max 2 Tons*2Main Roll forming machine Forming mold: Cr12MoV molding steel, through vacuum quenching heat treatment to HRC60-62 °then grinding the inner Hole and the end face. The precision machining roller surface with CNC latheShafts material:40Cr steel,CNC lathes,Heat Treatment,hard Chrome CoatedWith thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)Main motor and 14 reducers combination driving,about 14-step to form           Main Motor =5.5KW,Frequency speed control Non stop cutting and punchingCutter stype:Not stop cutting and punching The length of tolerance:±1.0mm(3m)Cutter motor:HydraulicServo motor power:3 KW Control System Control The Quantity And Cutting Length AutomaticallyInput The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.Combined With: PLC, Inverter, 10 Inch Touch Screen, Encoder, etcAfter-sale service of stud and track roll forming machine 1. The warranty of roll forming machine is two years .after the client receives the machine. Within the Two years, we will courier the replacement parts to the client free of charge.2. We offer technical support for the entire life of our machines.3. We can send our technicians to install and train the workers in the clients' factories with extra cost.Terms of trade 1. Minimum order quantity (MOQ): 1 piece2. Delivery time: about 40 workdays3. Port of loading: port of Tianjin4. Type of payment: by T/T or by L/CMore Roll Forming Machine for reference , welcome to send us Inquiry .  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
