Three in One Metal Roofing Sheet Making Machine Roll Forming Machine

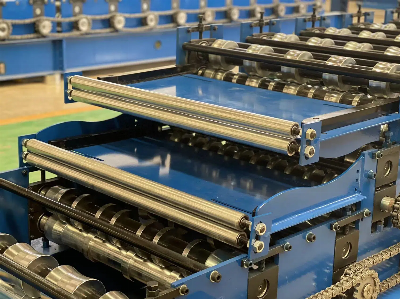

Three in one metal roofing sheet making machine roll forming machine This Three layers roofing sheet making machine can make three different patterns of roofing sheets. One is popular model IBR sheet ,the other one is the also popular corrugated sheet ,the last one is the glazed tile panels.Triple layer metal sheet roll forming machine picturesTriple layer metal sheet roll forming machine specifications  Coil requiredMaterialPPGI GI ALWidth925mmThickness0.3-0.7mm , as custom orderPower requiredPower380V 50Hz 3 Phase , as custom orderMain Motor5.5KW  Siemens BrandCutting Motor4KW  SiemensMachine Support Frame300 H Steel 10mmForming Station18 rows as profile Structure18-20mmShaft75mmRoller45# Steel with heat treatmentChains1.2 inchBearingsStandard  as custom orderSpeed15-30m/minElectric ComponentsDelta and SiemensSize 7.5*1.3*1.6MWeight4.5TComponents of line:1) Hydraulic De-coiler ---------------------------------------------------1 set2) Guiding Device--------------------------------------------------------- 1 set3) Roll Forming System--------------------------------------------------- 1set4) Cutting Device---------------------------------------------------------- 1set5) Hydraulic System------------------------------------------------------- 1 set6) PLC Control System----------------------------------------------------1 set7) Run out table ----------------------------------------------------------- 1 setCertificate Packing and Shipping 1. Steel Profile Ibr Roof Panel Sheet Roll Forming Machine need one 20/40 feet container to load .2.We have professional technicians for loading to make sure machine has no damage.3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.Company IntroductionFAQ1. Can you make the machine according to my design or photo type? A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine. 2: How can we be assured that you will deliver us quality machine with spare parts? A:1. Customers to send the technical people to our factory for checking the quality. 2.We can send the technicians to the buyer`s factory for the installation and trainning . 3.What about your warranty? A: Within the One-YEARS period, we could supply you the replacement parts for free . If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost . More information please send inquiry to us , you will get reply within 12 hours !  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
