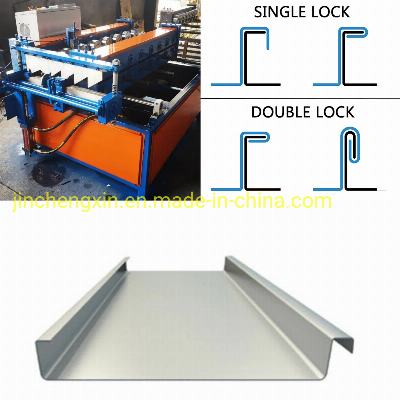

Ghana Portable Clip Snap Lock Standing Seam Roll Forming Machineour portable standing seam roll forming machine can be used at worksite,adjustable width,one inch or 1.5inch depth.With control box,and hmi,work in auto and manual way.This clip lock standing seam is with good protection of house and easy installation.TECHNICAL PARAMETERS Standing seam roof panel specification: 1)Material:galvanized coil,ppgi,cooper,aluminium,al-mg-mn alloy 2) Thickness of material:0.5-0.8mm 3)Yield strength:235-340mpa) 1.Main technical conditions of the forming line: Temperatura: -10 ºC ~ 35 ºC(Temperature:-10ºC~35ºC) Voltage:110volt 60Hz or 220volt 60Hz(or according to customer request Air pressure:0.6~1.2Mpa Total Power:≈4.5kw) Color: Production capacity:0-15meters/min(without cutting) Dimension (L*W*H): L≈ 1.6 m, W≈ 1.5 m, H≈ 1.2 m 1.Flow Chart of roll forming machine:) 2.Main components: No.Components NameUnitSet/Pcs Marks13-4 tons manual uncoiler1 2Feeder1 3Roll Forming Machine1 4Electrical control system1 5Hydraulic Guillotin1 6Electric seamer1 7Receiving table1 8Bending machine1 9Spare parts1 10Technical Manual1 11Customized container1 3.Photos of Machine: Manual cutting standing seam roll former Auto cutting standing seam roll former 4.Technology parameters: The weight of machine is about0.8tons) The total dimension of machine:1800(L)*1500(W)*1200mm(H) 4.1 4 TONS Manual uncoiler: 1SET Capacity of uncoiler:3-4tons Expansion of segment:manual Rotation of segment:manual Number of segment:4 Range of segment expansion:480-520mm 4.2 Feeding Entrance and adjustable wheel Qty: 1 4.3Main forming machine It adopts steel wall structure with chain transmission.The machine base is made by welded steel with destressing treatment Coil thickness:0.5-0.8mm Main motor type: 3 phase asynchronous motor Main motor power: 2.2KW Forming speed: 0-15m/min(without cutting) Approx.6 groups rollers) Roller :S45C with heat treatment,and surface is being hard chrome coated) Shaft: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product. Transmission type: by gear box and chain Qty: 1 4.4Hydraulic System: Material of blade: Cr12 Length measuring: Automatic encoder length measuring Way of cutting:The main machine automaticlly stops and the cutting will take place.After the cutting,the main machine will automaticlly start 4.5Product support frame Size:L 3m x W .0.7m Qty:2 4.6PLC Control System (The whole line is controlled by PLC and touch screen.The PLC system is with high speed communication module,it is easy for operation.The technical data and system parameter can be set by touch screen.) Control the quantity & length& cutting length automatically) The Machine will be stopped while it is cutting Automatic Length measurement and quantity counting (precision 3m+/-2mm) Voltage:110volt 60Hz or 220volt 60Hz (As per buyer`s request) 4.7Auto seamer: Qty:1 4.8 Bending machine It adopts steel wall structure with chain transmission.The machine base is made by welded steel with destressing treatment Coil thickness:0.5-0.8mm Main motor type: 3 phase asynchronous motor Main motor power:0.75KW Approx.2 groups rollers) Roller :S45C with heat treatment,and surface is being hard chrome coated) Way of adjustment: by manual way, Transmission type: by chain Type of curving:positive curving,negative curving, or Continuous curved Length of sheet be curved:Continuous curved:1 meters positive curving,negative curving:2-3meters Qty: 1 any inquiry just let me know. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
