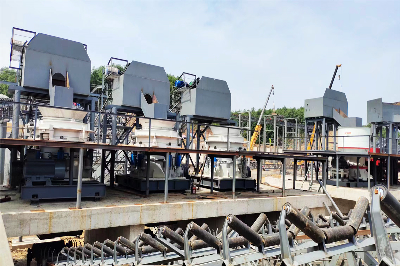

Hot-Selling Mining Rock HP Series Cone Crusher

Product Brief IntroductionHPS Series Hydraulic Cone Crusher is manufactured and designed through absorbing the latest world advanced technology and gets to be world advanced level. It is widely used in the fields of metallurgy, construction, hydroelectric project, transport, chemical industries and building materials for crushing all sorts of hard and above medium hard ores and rocks. HPS Series Hydraulic Cone Crusher has high performance, optimized design of stroke, rotate speed and crushing cavity achieves the effect of grinding, which increases the productivity and improves product shape.SMH Series Hydraulic Cone Crusher possesses greater superiority than ordinary ones.FeaturesOptimized design of driveline, lubricating and sealing constructs.Upgraded structure and high efficiency. Transmission parts and the structure of lubrication seal are optimized further based on the structure of fixed main shaft and eccentric shaft rotates around main shaft. This machine has the features of stronger loading capacity, the biggest installed power in the same model of this industry, smaller size, higher efficiency, lower noise.The best cavity design and adjustable stroke.High handling capacity. The perfect combination of crushing stroke, crushing speed and crushing chamber makes the capacity increase by 35%-60% than traditional spring cone crusher in production.Laminated crushing brings good product shape.The materials are crushed under the adoption of unique laminated crushing principle, and the efficiency is higher because of the optimized equipment and cavity. Meanwhile high crushing efficiency brings lower consumption of wearing part, cubic finished product shape and high content fine-grained product, which improves the quality of finished product and decreases the cost of equipment and whole system.Accurate and reliable full hydraulic operation.Full hydraulic operation is applied on cleaning cavity, overload protection, adjustment and locking. It works stably and reliably and operates conveniently .Meanwhile the structure of hydraulic system is optimized fully, the adjustment and control are more accurate, the responding of automatic protection is more sensible.Convertible multi-cavity&multiple functions.HPS series multi-cylinder hydraulic cone crusher has several medium crushing and fine crushing cavities, which can be only with changing relevant several parts as cavity lining plate, etc. It meets the process requirements of medium crushing and fine crushing better with combining the laminated crushing principle, realizing multiple functions.        The whole working process of HP multi-cylinder hydraulic cone crusher is that motor drives the rotation of transmission shaft by belt pulley and v-belts, then transmission shaft drives the rotation of eccentric sleeve around the main shaft through the spiral bevel gear, breaking the materials continuously.The material is crushed from all directions, crushed and ground according to their own grain, which formed the high compressive strength building aggregates. The materials that meet the requirements discharged from the crushing wall, and the remaining material continues to be crushed until it becomes standard product.Specifications     ModelMax feeding size(mm)Minimum discharge size            (mm)Motor power(mm)Producing  capacity(t/h)--Open cycle, closed side discharging size (mm)91316192226323822263238HP200C16022-3275-90     120130150    HP200M 13013-26 6585100120130      HP200F509-1940608090        HP300C18022-32132-160    185195215     HP300M14013-32 90115135160180220     HP300F609-226080100120140       HP400C26026-51160-240     250290340395   HP400M15016-38  125140165220275330    HP400F809-227090115130150       HP500C31538-64250-320       555649766  HP500M23026-64     366430468629657  HP500F20522-52    266299348393451   HP500EF18016-38  188212234267305337    HP800EC45038-89400       8901179138014751566HP800C35031-76      800850110012881398 HP800M32025-63     6127358159901137  HP800F26819-52   376412500620725867   Working Site/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
