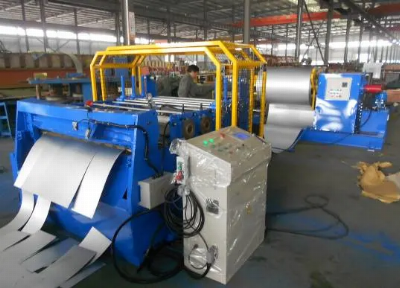

Levelling Slitting Cutting Machine

The Chart of Process Flow Technical Parameters a.5 Ton X 1250 Hydraulic Un-coiler Hydraulic system expand coil inner hole, Pump motor: 3KWFrequency Inverter to regulate turning speed, Motor: 3KWLink-connect expanding systemLoad capacity = Max.5TonsCoil Inner-diameter= 510±30 mmmm, Coil width = Max.1250mmAutomatic stopping device with limited switch as assistance to control stop/star rotationb.Levelling, slitting and Cutting machinePolythene Film-On device, un-poweredFeeding Section with guide deviceLevelling Device with 5 over 4 shafts to remove the Coil-setLevelling/Slitting motor: 15KWOne stage of slitting rollers requiredTotal Seven sets of slitting tools, Max .eight trips at one timeExtra one set of slitting wheels used as spare parts The min. slitting width between two pieces of tools is 70mmThe min. slitting width at edge is 40mmElectric guillotine, Main Motor=5.5KWWorking width: MAX.1250mm; work thickness: 0.4-3.0mmProtection Mesh Cover Above Roll-former To Avoid Hands Go Insidec.PLC control systemControl the quantity & cutting length automaticallyCombined with: PLC, Touch Screen(Siemens), Inverter (Schneider), Encoder (Omron), etcCut-to-length tolerance≤±2 mmControl voltage 24Vd.Product Rack   un-powered, 2 meters, 2 unitsAfter-Sale Service In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.Installation:If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.Terms Of TradePackage & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
