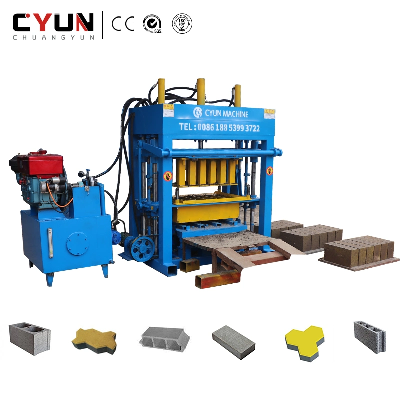

4-30 Smaller Electric Egg Laying Concrete Brick Making Machine

Offer Qt4-30 Manual Hydraulic diesel Concrete Brick Making Machine Cement Paving Block Machine 1. Advantages:1. Diesel Engine Power (Electric Option Available)2. Hydraulic Press, High Strength of Block and Colored Paver3. Produce sizes of hollow block, solid brick, hourdis, interlocking paver and curbstone by changing molds4. Suitable For Medium and Small-Scale Block Factory2. Electric Power List of QT4-30 diesel engine hydraulic cement brick making line  No.Name of MachinePowerDescriptionAQT4-30 Block Machine15HP1. Diesel Power: 15HP2. Oil Consumption 3L/Hour3. Hydraulic Press: 21MPa4. Pallet Size: 850*550*20mmBJQ350D Diesel Mixer10HP1. Diesel Power: 10HP2. OIl Consumption: 2L/Hour3. Capacity; 350L BarrowsWithoutCarry fresh block to curing sitesTotal: QT4-30 block making line total power is 20HP  3. Main technical parameterQT4-30 diesel hydraulic paving block machine technical parameter  Dimension of host machine1850x1330x2150 (LxWxH)total machine power13.34 kW(18.0 HP) 2200 r/mincycle per mould30sDimension of diesel engine hydraulic station1400x900x1320mm (LxWxH)Diesel engine specificationChangchai ZS1105Weight1300KGSPallet size850x550x20mmBlock typeblock, paver, curbstone and so onOil consumption2L/HDiesel engine starting modeElectric startRated pressure15MpaVibration force30KN3. Worker Numbers : 4-5 WorkersTwo Workers to load material into mixerOne Worker to operate block machine and add pallet to block machineOne or Two Workers to carry fresh blocks to curing sites.4. Factory Area for QT4-30 cement brick making line: 600-1000M2Shelter for Machines: 30M2 (6*5mm)5. Pallet Number: 600pcs pallet for QT4-30 diesel hydraulic hollow brick machine.Bamboo pallet, fiber (GMT) pallet and PVC pallet are available. According to Experiences and Feedback from our customers, we recommend you the Fiber Pallet:Need any information and updated price, please send inquiry. We looking forward to growing with you!     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
