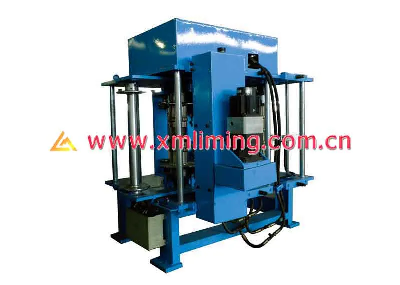

Yx67 Convex /Concave Curving Machine

YX67 CONVEX /CONCAVE CURVING MACHINEProfile:1.Technical parametersThe main technical parameters are for your inference only.Only if you provide the profile required or the real objects of sectional materials, and we will offer the accurate parameters.1. General ParameterThicknessAluminum sheet :0.7-1.2mmPre-painted sheet :0.5-0.7mm The radius for convex/concave adjustable automatically through parameters setting from the touch screenAluminum sheet, Smooth CurvingPre-paint Steel sheet, the small ribs sat flat bottom across the profile are allowed after curved. Rib height is not more than 1mm. Smooth curving for 0.8mm PPGIConvex/ Concave curve radius:        10mSide bending: ≤3mm/3mProfile width after curving                400mmline producing speed   12m/minMake the YX67-400 profile sheet which has been formed become convex/ concave curve in accordance with the standard of drawing. The curved sheet should be appearance regularity, non-distortion,no sctraching and the dimension should be accord with the standard drawings.Different curving radius is available in one piece of sheet, also available to both convex/concave curves. The radius to be set through touch screen / PLC. Encoder and frequency inverter are required as well.Roller material :GCr15, heat treatment6. Service after sellIn correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.Installation:(1) If installation is needed, Liming (the seller) will dispatch technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.(2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.a) Position the machine in the buyer's factory.b) Prepare necessary electric wiring.c) Prepare material of trial running.d) Provide labors for assistance and installation during installation.e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller's technician will go smoothly.7. About usPlease visit the web site: liming2018.en.made-in-china.com for detailed information Below pictures for your reference only After-Sale Service In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.Installation:If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free.The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians. Terms Of TradePackage & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required before the machine be send out of factory.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
