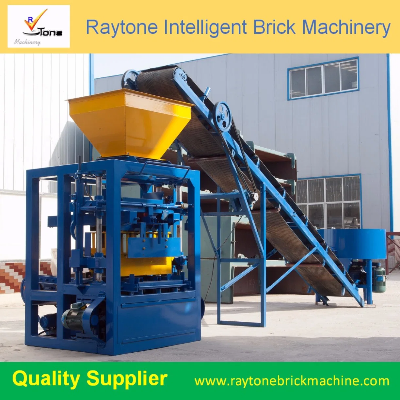

Qt4-26 Automatic Hollow Concrete Flyash Brick Block Making Machine

                                                QT4-26 Block making machine Description1.QT4-26 brick Machine work principleQT4-26 type small semi-automatic baking-free brick machine is based on domestic advanced production technology, can produce hollow blocks, standard bricks and so on. Vibration machine realizes super vibration effect, material can be effectively fed, and the upper electric motor supplies dense vibration pressure, making the blocks with high strength, its performance and product quality.a nd can be compared with large equipment.2.QT4-26 brick Machine Configuration(1) JQ350 Description: to mix the raw material of sand, loosen stones, cement, etcItem: JQ350 Mixer                           Power: 7.5kwFeeding capacity: 560LDischarge capacity:350LOverall dimension (mm):1500*1200*1200  (2)Host brick machine: making concrete block via mould pressing.  (3) Manual Block TrolleyFunction:The trolley is used to transport the block on pallet to storage area.Two trolleys are equipped for each machine3.QT4-26 brick Machine specifications  main technical parameters(1)Dimension of host machine2060*1630*2480mm(6)Host machine power21.7kw(2)Moulding period26s(7)Vibration force35KN(3)bamboo pallet size850*550*25mm(8)Mixer modelJQ350(4)Weight of the host machine3T(9)Voltage380V/415V(5)workshop area60 m2(10)labour3-54.QT4-26 brick Mahcine prodcuctivityproduction capacity Size(LxWxH)Pcs/Mould Pcs/ HrPcs/ 8 Hrpcs/month(1)400*250*2003230-2801840-224055200-67200(2) 400*200*2004310-4002480-320074400-96000(3)400*150*2005400-5003200-400096000-120000(4)400*100*2007550-7004400-5600132000-168000 5.QT4-26 brick Machine area Needed:Theoretical workshop requirements: 60 square meters, need 3-5 workers, one operates the mixer and feeds material, one operates the host machine, and two workers transport the blocks. The office, curing area, stacking area are arranged according to your specific conditions.6.After-sale ServiceWe have our own technican team to do the machine installation for automatic brick machine line, and for some semi-automatic or manual block machine, normally user can operate the machine well, if technician is requested, we can also meet the demand. And we provide 7*24 hours online service during after and before sales service.7. Our Advantages(1)Using the ultra strong steel and special welding techniques, it is strong and of high resistanceto vibration; (2)Using imported electrical appliances, sealing parts and parts of hydraulic components, like Simens Motor, Simens PLC, Mitusbish PLC, or China famous brand motors, Switches, etc. the equipment's comprehensive performance is stable and reliable; (3) our company focus on the technology of gearbox, which is key point of the brick machine, which can improve the productivity speed and block quantity.8. FAQ(1)Packing method ?  Nude packing, or in plastic clothes, or in plywood box, accordingly.(2)What's motor and electric brand we choose for our machine?  Siemens brand, or Chinese famous brand.(3) What kind of steel my machine and molds use ?   Q235B for machine, Mn steel for molds. More durable.(4) Will you send engineer to install for user?   Yes, we have technician service team. They will supply service as per needs.(5) Are there any spare parts together with the machine ?  Yes, we will send spare parts together with machine, the user could use more than two years.(6)Do you supply free technical service during later production ?   Yes, we have online technical service in 24hours.(7) What is the Warranty for the machine? For the machine,we have 1 years warranty(except the wearing part ).If any qualityproblems on our side occured in this period ,we will take on the shipping cost and replacement. 15.Company profileLinyi Raytone Construction Machine Manufacture Co.,Ltd (Export Division: Linyi Raytone Machinery Imp&Exp Co., L;td, was established in March of 2014), is located at Dazhuang Economic area, Yinan County, Linyi city, with 100 more staff, with a standard workshop of 22,000sqm, and owns comprehensive manufacture facilities and more than 200 sets of various finishing machines. We mainly manufacture all types of concrete block making machine, concrete batching plant and corollary equipment for the block machine line; The products have been sold widely to more than 60 countries. At present, we can manufacture 3,000 sets of construction machinery per year.   Our company has set up a complete set of effective management system to strengthen the inner management, focusing on quality and after-sales services;Sincere to the buyer, providing brilliant quality products, excellent service, competitive price and prompt delivery is our business principle;Welcome worldwide friends to visit our company for further cooperation.16.Crisa Contact Details     Mob  :+86 18396866513     PLEASE CONTACT US FOR FURTHER INFORMATION  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
