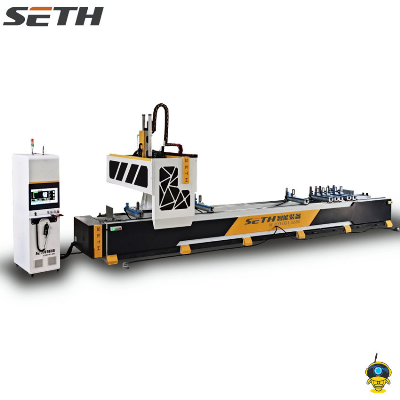

4 Axis CNC Machining Center for Curtain Wall Industrial

Jinan SETH Intelligent Equipment co.ltd.Product DescriptionCNC machining center for aluminum profileFeatures:1.Uses for milling all kinds of holes and slots of aluminum doors, windows and curtain walls or industrial aluminum profiles, and can perfectly realize drilling and milling with 3D programming software. 2.Imported control system, servo motor, high-quality ball screw, linear guide pair and bearing are adopted to ensure high machining accuracy of the equipment. 3.The fixture position can be placed automatically. 4. Double worktable can process two or two profiles at the same time, with interactive feeding and non-interference. 5. With 12-station tool magazine, automatic tool change. 6. Adopt high-speed motorized spindle imported from Italy, which can finish machining at any angle within 90, and has high working efficiency. 7. The 9-meter extension model can be customized.1. Aluminum Facade Machining Center is advanced industrial CNC 4-axis profile machining systems.2. Suitable for aluminum profile and other light alloys, as well as UPVC profile processing.3. The milling head can drill within a range of 90 ° ~0 ° ~-90 ° with according tools at any position.4. The machine completes milling, drilling, flexible tapping, grooving, steel drilling(within 3 mm) and other multi-functional precisely in one time, the profile was conveyed by the precise stationary avoid profile damage.5. Adopts imported high precision linear guide ways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing in high precision.6. High-quality imported automatic tool change based on automatic travel magazine, minimum the tool change time and rotation noise, maximum stability, precision, and cutting ability.7. Magazine is equipped with 9 tool positions as standard, adjustable pneumatic special fixture to ensure efficient processing.8. Double working areas for two kinds of profile loading, milling one after another, interactive feeding, non-interference.9. Multiple safety protection structure to ensure operator safety.10. Operation system based on the window environment. Friendly interface and remote control for quick trouble shooting.11. Automatic clamp position function.12. Online with ERP software, can realize scanning code and automatic processing(optional).13. Gantry Type structure. High strength welding structure, heat aging and annealing processing,    guarantee high rigidity and high stability.14. UPS & AC is included for protecting operation system.  Main parameters:Standard configuration:    Power supply:380v,50Hz  Working pressure:0.6~0.8 Mpa Total power:16 kw  Spindle power:9kw   Spindle rotary speed:24000rpm  Spindle maximum output torque:6.4 NM  Tool magazine: 8+8 Tool shank model: ISO30 Clamps No.: 8 Processing travel:X-6000  Y-500  Z-300 Feeding speed: X50m/min   Y25m/min   Z10m/minProcessing size: 6000x450x300Lubrication : automaticCooling :Oil mist pumpOverall dimension:9000x2230x3060mm Weight: 5700kg   Detailed Photos        Hot sale products   Packaging & Shipping      Company ProfileJinan SETH intelligent equipment co., ltd. specializes in the production ofaluminum,upvc window and door machine,curtain wall and hollow glass processing machineequipment that can meet the needs of different clients, and can also be customizedaccording to customer requirements of different grades of products.The company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers,skilled production engineers, experienced production management team and after-sales service that providing you with a strong guarantee. The company has all kinds of equipment processing workshop, assembly workshop and quality inspection center, can independently realize the design of equipment, processing, assembly,test one-stop flow operation, to ensure the excellent quality of equipment.our main products including aluminum&uPVC profile machining center, saw machine ,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.Customer is the foundation, the company in line with the " quality first, customer first" principle,Please join hands with SETH to lead intelligence. FAQ      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
