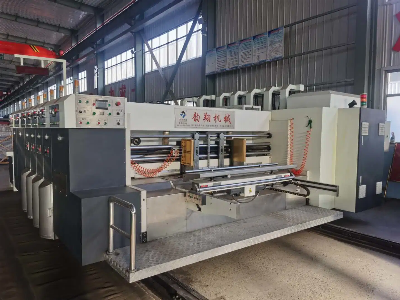

High Speed Flexo Printing Slotting and Die Cutting Machine

   1.Design production speed300pcs/min2.Economic production speed180-250pcs/min()(depending on the board and ink)3.Max paper feeding size2600mm×1200mm4.Min paper feeding size650mm×380mm  5.Max paper printing size2400mm×1200mm6.Standard plate thickness7.2mm7.Printing accuracy±0.5 mm8.Slotting accuracy±1.5mm9.Die cutting accuracy±1.5mmMachine highlights:, 7.5KW ,,.The whole process adopts vacuum adsorption transmission, adopt 7.5 KW high efficiency energy-saving variable frequency motor, all ceramic vacuum adsorption transmission wheels, delivering paper precise and fast.,.Servo drive die cutting unit adopts German Rexroth servo motor matching,independent servo die cutting.,,,,  ,,,  .Ink distributing transmission system adopts new design, using imported motor with cross link shaft, gear drive, lower noise, enhance transmission tightness, improve the machine running speed and stability, and improve the precision and printing overprint precision.,,,,;  ,,.The machine ink supply is even, the ink dosage can be controlled to prevent ink from overflowing.It is also equipped with ink shortage warning device to prevent the damage of rubber rollers due to lack of ink. It can also effectively reduce waste product productivity.,.Each unit is equipped with the contact flow type oil surface balancing device to prevent the shortage or overflow of individual unit lubricants.      Feeding unit(Servo motor drive lead edge feeding system one unit )1,Machine separate and combine,,.Electric control mechanical separation and combination, continuous ringing alarm to ensure the safety of operators.,.The transmission shaft is attached to the friction clutch to avoid the wrong action and damage the machine..Pneumatic interlocking device. ,,,.,;,.Units after combined, pneumatic locking between two groups, and are equipped with a general locking devices, main motor cannot be started when cylinder is not locked; Unable to open the locked cylinder when the main motor is running.2,Lead edge feeding unit,,,.,,.Leading edge feeding system, accurate delivery of paper, feeding time intelligent control.Can deliver hard card board craft paper and three, five, seven layers board.,,,.    Vacuum adsorption paper to overcome the different bending degree of cardboard to ensure the smooth delivery of paper.,,.    The side baffle, front baffle clearance and rear baffle position are all electric adjustment.,().    Skip feeding device(Able to continuously or skip feeding paper as per demands).,.,  .PLC ,,,,,.     The number of planned production can be set.When the plan is complete, the system automatically stops sending the paper and sending a warning signal.The feeding unit is equipped with PLC and color touch screen, showing the phase setting of the printing and die cutting units, and can set and display the production quantity,warning when complete the order .3, Dust suction device1),,,, .Equipped with high quality electrostatic precipitator brush, and equipped with dust suction device, can remove impurities on the printed surface of the cardboard and improve printing quality.4, Paper transmission system:,,,.The paper transmission adopts efficient and energy-saving frequency conversation motor, vacuum adsorption, all-ceramic adsorption paper transmission wheel, the paper feeding is smooth and fast.5, Automatic zeroing device,,,.Feeding ,printing and die cutting unit electrical auto zeroing.2),,,Normal cartons use automatic zeroing device,after attempting with few paper can adjust to the correct position,reduce paper waste.      Printing unit1,Printing roller1)¢410Thediameter of printing roller is ¢410.(including plate).,,.Seamless steel tubematerial,surface grinding,hard chromium plating,.Processed with balance correction,stable running.,.,  ,.Ratchet fixed coil shaft,full hanging format of plate hanging slot.Equipped with plate correction function,save time and improve working efficiency.,,.When loading and unloading plate, electric control positive and negative rotation of the pedal switch, simple and fast.:, PLC ,,;,.    Phase adjustment: the printing roller is equipped with automatic zeroing device, and adopts the PLC and multi-function touch screen control, the touch screen man-machine interface, click to enter plate roller phase adjusting page ,automatic zeroing, automatic control and preset printing position., PLC ,, 10mm.   Axial adjustment is electric adjustment, and adopt the PLC and multi-function touch screen control, click to enter axial adjusting page,ranging 10mm left and right.2, Pressure roller,,.High quality seamless steel tube, processed with deep hole boring machine, outside fine grinding and hard chromium plating.¢156mm.Pressure roller out diameter 156mm..Adopt high frequency hot assembling.,.Processed with balance correction,remove centrifugal force,running smoothly., 1-11mm,,.The gap dial of the pressure roller is electric adjusted,adjusting the range 1-11mm, using the cross slider connection, and the driving gear will always
