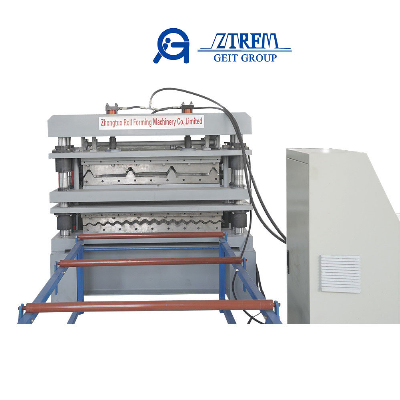

Roof Wall Ztrfm Double Layer Sheet Metal Forming Machine Machinery

Steel Glazed Trapezoidal IBR PBR Corrugated Roof Tile Double Layer deck and step tile Roll Forming roofing sheet Machine pricesProduct DescriptionWhat is the application of Steel Glazed Trapezoidal IBR PBR Corrugated Roof Tile Double Layer deck and step tile Roll Forming roofing sheet Machine pricesSteel Glazed Trapezoidal IBR PBR Corrugated Roof Tile Double Layer deck and step tile Roll Forming roofing sheet Machine prices is mainly producing steel roof/ wall sheet .The final products have three types,corrugated sheet and trapezoidal sheet and glazed tiles.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.1.Profile drawing(we can design as customer's profile drawing):2.Components of the Double layer rolling forming machineItemNameRemark1Manual decoiler5 tons/7 tons2Main roll forming machineFamous brand motor3Control systemDelta / Siemens brand4Hydraulic systemChinese famous brand5Receive table3 meters3.Process flow of the Double layer rolling forming machine4.Manual decoiler (Hydraulic decoiler is also available)1. Capacity: 5 tons /7 tons2. Coil diameter: 450-550mm3. Coil outer diameter: 1500mm4. Coil width: 1200mm(as customers' profile drawing)5.Main roll forming machineFeeding device: With two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.Machine body: 350H steel weldedMachine frame: Iron cast molding frameRoller station: 18 stations &16 stationsRoller material: 45# steel with quenched treatment and hard chroming Shaft diameter: 80mm,solidShaft material: 45# steel with tempering treatmentMotor power: 7.5 kwSpeed: 0-20m/minTransmission: By double chainVoltage: 380V,50HZ,3PH6.Cutting systemBlade material: Cr12,with quenched treatmentMotor power: 4 kwCutting tolerance: +/-1 mmCooling system: With fan coolingCutting type: Hydraulic cuttingFeature: Low noise and high performance7.Control systemControl system: PLCPLC brand: Delta from TaiwanFrequency converter brand: Delta from Taiwan5 Encoder: OmronFunction: Automatic control the length,quantity and batch8.Product run out tableType: Manul (Auto stacker is also available)Length: 3 metersCertifications  Specification     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
