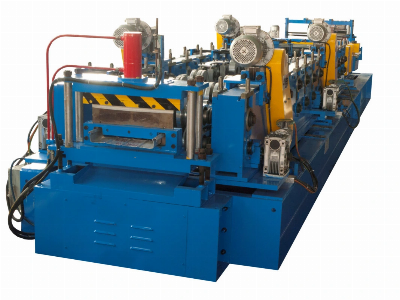

Standing Seam Roof Sheet Roll Forming Machines

YX66 ROLL FORMING MACHINE FOR TAPERED AND STRAIGHT STANDING SEAM PROFILEProfile:The chart of flow:  Technical Parameters The main technical parameters are for your inference onlyOnly if you provide the profile required or the real objects of sectional materials, and we will offer the accurate parameters.  (1) 3Tons un-coilerDescription There are different choices, please turn to the catalogue of un-coiler(2) The general machine parameterSuitable roll forming material Color steel sheet or galvanized steel sheetThicknessG245 Pre-painted sheet / GI/GA, 0.7-1.0mmAluminum sheet 0.9-1.2mmFeeding width Frame designWall-plate-frame-designPolythene Film-On DeviceUn-powered, with un-coil-rollers at double sidesWith rubber shaft to film-on the filmMotorized lateral shearing deviceMotor Power: 0.75KWWorking thickness up to 1mm steel sheet/1.2mm aluminum sheetLongitudinal Slitting deviceUn-powered, keep the same step with roll formerWorking thickness up to 1mm steel sheet/1.2mm aluminum sheetRaw material of slitting roller: Cr12Mov, heat treatment3 stages to form the central rib on the bottomRoll stages of roll former12 stagesMaterial of forming roller45# steel, CNC lathes, Hard Chrome CoatedShafts DiameterΦ75mmMain motor powerTotal 12 motors for roll former, as follows:Four driving motors, power =2.2 KW*4, Frequency speed controlFour Servo motors, power=2.2KW*4, for controlling level side movingFour servo motors, power= 0.82KW*4, for angle adjustmentMax. Line speed of roll former 7-8m/minHydraulic cutting devicefor straight profile onlyThe cutting carriage should be removed when produce taper profileHydraulic group power4KWMaterial of cutting bladeCr12, hear treatment Electric Standard380V /50Hz/3PH or as the customer's requirementsMachine Dimensions 7180mm×1550mm×1650mmMajor Color of Machine PaintedRAL 5015 (Blue) or as per customer's requirementsElectric Seaming MachineOne unitHand Seaming PincersTwo units(3)  PLC Control system  PLCSiemens brand (ABB brand is available if required)Touch ScreenSiemens brand (ABB brand is available if required)InverterSchneider brand (ABB brand is available if required)Encoder Omron brand(4) Product rack  Descriptionun-powered, 3 units (6) Option:40GP/HQ container and Disposal inside for standing seam machinePl refer to the attached pictures for details(6) Service after sellIn correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.Installation:(1) If installation is needed, Liming (the seller) will dispatch technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.(2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.a) Position the machine in the buyer's factory.b) Prepare necessary electric wiring.c) Prepare material of trial running.d) Provide labors for assistance and installation during installation.e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller's technician will go smoothly.(7) About usPlease visit the web site: liming2018.en.made-in-china.com for detailed informationBelow pictures are for your reference only                                                                                   After-Sale Service In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.Installation:If installation is needed, WE will dispatch a technician to the buyer's factory abroad to assist regulating the machine with charge free.The buyer should assist US to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.                                                                                  Terms Of TradePackage & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required beforethe machine be send out of factory./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
