Good Quality Automatic Rigid Box Making Machine

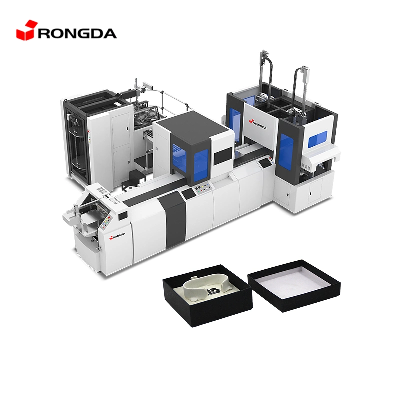

 RB350 Automatic rigid box makerRB350 is the newly developed high-speed intelligent rigid box machine. It employs high speed motion controller, PLC programmable controller, Robot &camera positioning system, pneumatic system, HMI and remote monitoring system to automatically finish feeding and gluing paper, conveying cardboard, forming and pasting four corner of cardboard, positioning and bonding, and wrapping box in one time. Effectively replace manual production, greatly improving production efficiency and quality of finished boxes. It is applicable to make high-end boxes for mobile phones, shoes, shirts, cosmetics, perfume, moon cakes, sweets, chocolates, liquors, cigarettes, tea, etc.Features: 1. Automatic servo controlled paper feeder.2. Automatic circulation, mixing and gluing system of hot-melting glue. (Optional: glue viscosity meter)3. Glue preheating function. (Optional)4. Non-stop cardboard feeding and stacking.5. Hot-melting paper tape is automatic conveying, cutting, and pasting the cardboard box corners in one process.6. Servo driven corner pasting unit, reduce the setting time, more accurate to paste the corners.6. The vacuum suction fan under the conveyer belt can keep the glued paper from deviating.7. The glued paper and cardboard inner box employ Robot and three camera positioning device.8. Double wrapper unit, according to the conveying situation of the boxes above the conveyor belt, take the boxes to the wrapper unit in turn.9. The wrapper can continually delivery boxes, wrap, fold ears and paper sides, form and press the box in one process.10. It adopts 51sets servo and 14 sets stepping motor which realize the full automatic adjustment, data can be stored.The corresponding relationship between the parameters:W+2H-4T≤C(Max)                        L+2H-4T≤D(Max)A(Min)≤W+2H+2T+2R≤A(Max)            B(Min)≤L+2H+2T+2R≤B(Max)Main Technical Parameters: ModelRB3501Paper size(A×B)Min.70*130mm, Max. 460*600mm2Box size(W×L)Min. 30*50mm, Max.250*350mm3Box height(H)10-100mm4Fold-in paper size(R)10-90mm5Paper thickness100-300g/m26Cardboard thickness(T)0.8-3mm7Paper stacking height630mm8Cardboard stacking height1100mm9Precision±0.10mm10Speed
