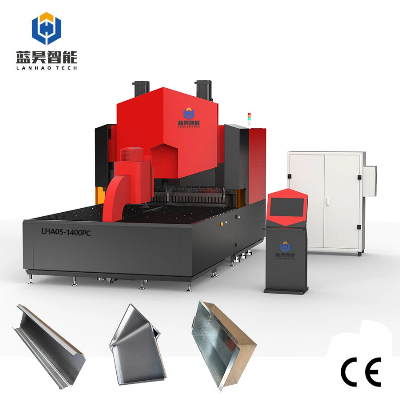

Lanhao 1400mm Best Panel Bender Metal Forming CNC Bending Machine

  Product ParametersLHA-1400PC-03 Technical parameters Feeding structurePressing armWork table structurebrushSystem minimum accuracy0.001mmMax bending speed0.2 second/timeMax feeding speed90m/minMax.bending width1400mmMax.Bending sizeL 1400mm X W 1400mmMax. Bending height(The maximum bending height after customization can reach 300mm)  170mm300mm(customizable)Min. Bending height3mmMin.arc radius0.5mmRated power380VMotor power  40KWAverage power About 1.9KWNoiseAbout 50 dBMachine sizeL440cm X W190cm X H290cmTotal weightAbout 12 tonsUser operating environmentWin7 or above systemMax. Bending widthUTS 515N/mm2  304 stainless steel   1.5mmUTS 410N/mm2  cold     panel   2.0 mmUTS 265N/mm2  aluminum     panel   3.0mmMin. Panel width 0.35mmFour side forming min. Inner size About 140mmx190mm( excluding inverted folded side)Double side forming min. Inner size About 140mmBending angle 0-180 degreeAxis15Bending CasesCertifications Company Profile /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
