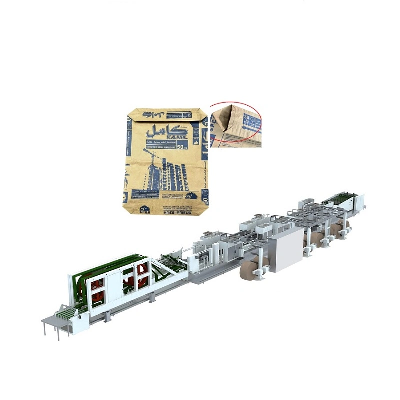

Building Materials Gypsum Powder Mortar Bag Cement Paper Bag Making Machine

  Kraft paper Cement bag, Valve Bag making machineThis machine is a professional kraft paper bag making machine for cement bag chemical bag Sack bag making.It can make 2-4 papers+ PE, 5layers bags.The whole machine consists of Tuber Machine and Bottomer machine .  MachinePictureConfigurationTuber Tuber ZT1962S4-color Servo Printing Machine Add - Straight cutterAdd M edge MechanismIntermittent Venting Mechanism (Part)BottomerBottomer GU8320 Inner ReinforcementTuber machinStepped cut, tube length (mm)500-1100Straight cut, tube length(mm)500-1100A-shaped edge,width (mm)370-620cut Straight+steppedLayers2-4papers+1 peTop speed tubes/min150(tube length:780-820)Normal speed tubes/min120-140Max paper reel diameter(mm)1300Size of the machine(m)28.72*2.38*2.875Power 35WH-Speed Bottomer Machine Tube length 470-1100 mmFished bag length  (L)330-920 mmBag Width  (W)330-600 mmBottomer width (D)90-200bag Center Distance (L-D)250-800 mmValve paper length80-420mmThe max design speed 230 bags/minNormal production running Speed  200 bags/minPower86 kwMachine size 32.63*5.1*2.52 m  Company Profile FAQ1) What is the suitable material for your machines?  Kraft paper , and PE film . 2~4 layer papers , 1 film, up to  5 layers2) How many years of your factory?Our factory since 1983.focus on the kraft paper cement bag making product line , include Tubmer machine  & Botttomer machine . have more than 114 Patents of machine . Export business is 70%,More than 20 countries3)Lead times and shipment :   3~4months for standard machines.  Tuber machine 2*40HQ, Bottomer machine 3*40HQ , Total: 5*40HQ4)Install and Trainning :    2~4 Enginners 15-20days , and trainning 25days.5) Where is your factory? How can i visit your company?Our factory is located in Guangzhou, Guangdong Province, China. Nearly HK and the Guangzhou Baiyun International Airport. warmly welcomed to visit us./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
