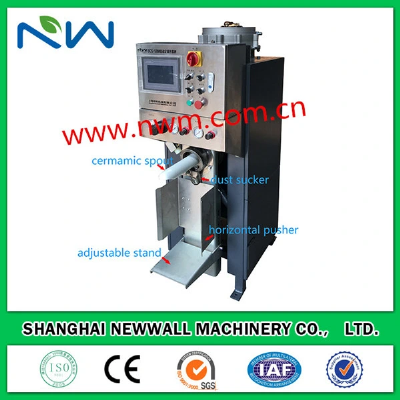

Valve bag packerBCS-50M automatic dosing valve bag packer is a new generation packer. It has four patents: low air pressure pulse conveying, super wearable airfloating device, automatic adjust double stroke gate valve, ceramic spout.The packer is suitable for packing different type of raw materials. Such as industrial micro-powder, powdery pigment, powdery chemical, flour and food additive, all types of dry mortar and others. Technical parameter:Capacity: 5-7 bags/min( note: different material, the packing speed is different)Precision level: ±0.5%packing range: 10-50kgMaterial inlet size: Φ300mmCeramic spout size: Φ63mmValve bag mouth size: ≥Φ70mmMax. Aggregate granular size: 5mmWorking ambient: 0-40ºC, humidity≤90%RH, no dewworking power: AC220V/50HZVoltage fluctuation range: -15%~+10%Frequency fluctuation range: ±2%working air source: pressure≥0.5Mpa, air consumption is 0.2m3/minDust collection air volume:≥2000m3/hStandard outline dimension: LXWXH=1000mmX550mmX1500mmThe brand of main part:Air cylinder:AirtacMagnetic valve:AirtacElectric component:SchneiderControl unit:ToledoTouch panel:Kunlun tongtai(China)Pneumatic butterfly:WAM, ItalyElectric control box:SUS304Surface treatment: Whole machine is Electrostatic spray, mobile part is galvanized /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
