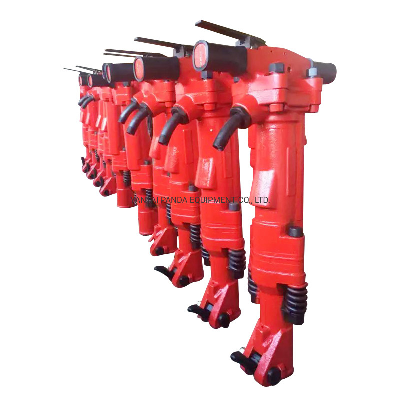

Tpb90 Jack Hammer Toku Paving Breaker Stone Splitting Machine

Product Description:Paving breaker uses the compressed air as a driving force. It can efficiently complete strengthen of concrete and the breaking of rocks and asphalt. The compressed air is distributed alternatively through the distributing valve into either end of the cylinder assembly so that the hammer inside is made to carry on a reciprocaql motion which impacts the shank of the steel chisel by the tappet drives the chisel into the concrate foundation and makes them split into huge pieces.And it is more high-powered, more efficient and has much longer life. Especially, for the crushing of Large, thick, hard objects, it is the ideal tool to the foundation constructions, such as the Mines, bridges, roads, municipal construction, etc.Specification:TYPETPB90TPB60B87CRB777WEIGHT(KG)42423937LENGTH(MM)723723686733CYLINDER DIA(MM)66.6757.1563.557AIR COMSUMPTION(L/S)3733.45534WORKING PRESSURE(Mpa)0.630.630.630.63AIR PIPE INNER DIA(MM)19191919PISTION STROKE(MM)152100100189SHANK SIZE-128*152MM28*152MM28*152MM32*152MM1 1/8 * 6 INCH1 1/8 * 6 INCH1 1/8 * 6 INCH1 1/4 * 6 INCHSHANK SIZE-232*152MM32*152MM32*160MM 1 1/4 * 6 INCH1 1/4 * 6 INCH  FAQ:Q1: Can I have a sample for testing?A:Samples are still to be paid but discounted price can be provided. Q2: Do you have the inspection procedures?A:100% strict inspection and testing for every order before packing.Q3: How can i get the after sale services?A:Free replacement will provide once the problems casued by our product quality.Q4: Can I have a visit to your factory before the order? A: Sure, welcome, here is our address: Yantai, Shandong. CONTACT:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
