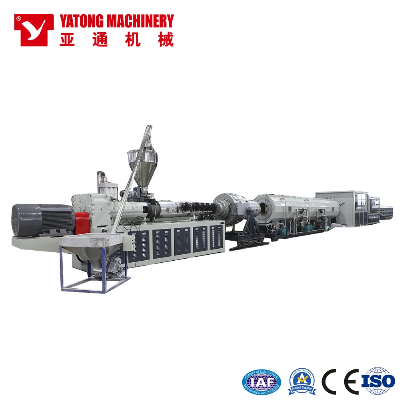

Yatong 160mm PVC Tube Production Extrusion Line

Yatong 160mm PVC Tube Production Extrusion Line Product Description1- PLC control , high degree of automation2- Adopting special screw and barrel , good effect3- Adopting compound spiral engine head , effectively eliminate memory function of the material4- Easy operate and need less worker5- Convenient for maintance Produce process: PVC powder + additive →mixing →spring feeding →twin screw extruder →mould and calibrator → vacuum forming machine →haul off machine →cutting machine →stacker Specification :Technical ParameterSJSZ80 Conical Double Screw ExtruderModelSJSZ80Screw diameter80/156mmQ'ty of screw2pcsScrew material38CrMoALAScrew nitriding depth0.5-0.7mmScrew speed1-37rpmScrew effective length1800mmMotor power55kwBarrel Heating power36kwBarrel heating zone4zonesBarrel cooling power0.25kw* 3zonesExtrusion capacity300-360kg/hTemperature controllerOMRONContactorSCHNEIDER or SIEMENSVacuum TankTank length6000mmVacuum pump4kwWater pump4kwCooling wayWater spray coolingHaul-off MachineTraction wayPedrail tractionTraction motor1.5kw*2pcsTraction length1500mmClamping waypneumaticSaw CutterCutting motor1.5kwControl wayPLC controlCutting pipe size200-400mmStack RackLength5000mmWorking table materialStainless steelPower supply380V/50HZ or depending on customer requirementREMARK : if the equipment or technological parameters have some change , we shall not make a notice separately CPVC pipe extrusion line is used for producing CPVC pipe , the conical double screw extruder can be used to extrusion CPVC power and equipped with spcialized screw and barrel for CPVC material . PVC Pipe Application : machine for PVC tube is mainly used in the manufacturing of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing ,cable laying etc. Outstanding features of PVC Drain Pipe Production line:1.        Extruder: adopting conical twin-screw extruder, unique designed screw, realizing shorting plasticizing time, good compounding and excellent plasticization.2.        Gearbox: adopting super quality gear box and reducer, with nice  outline, stable running, low noise and long service time.3.        Extruding barrel temperature controlling system: adopting cast aluminum heaters with stainless steel covers, wind cooling system, ensuring good features of cooling and heating, precision temperature controlling.4.        Screw and barrel: screw-core installing with internal temperature controlling system, barrel equipped with vacuum degassing system, can get rid of the waste gas from the raw material which can guarantee super quality of the products.5.        Driving system: adopting A.C motor, using FUJI or ABB inverters which provide stable torque output and various speed.6.        Vacuum calibrating tank: with two vacuum chambers which can make sure the perfect roundness of the pipe, spraying water cooling, equipped with temperature controller, realizing automatic discharging the water, the main body of the tank make of stainless steel, long service time.7.        Haul-off machines: 2 laws, 3 claws, 4 claws, 6 claws and 8 claws are provided to manufacture various pipes, haul-off speed governed by the FUJI or ABB inverter.8.        Cutting unit: saw cutting and planet saw cutting, with dust collection system.9.        Staking unit: automatic overturning system, can freely fix the length of the pipe.10.     Controlling system: manual controlling cabinet or SIEMENS PLC touch screen controlling After Sales Service1- The machine inspection before delivery in YATONG MACHINERY When you come to our factory .Check everything is it ok .2- Free of charge of some necessary spare part.3- One year guaranteeof all the machines running , if any problem ,we will bear. Of course if the machines after one year ,you also can ask for the technical guidance.4- 1-2 technical engineers will be come to your factory to installation and commissioning the machines and train your workers if you need.5- We accept 30% TT down payment, 70% TT or LC at sight before delivery.6- Film packing or plywood packing suit for sea shipping.Company Profile   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
