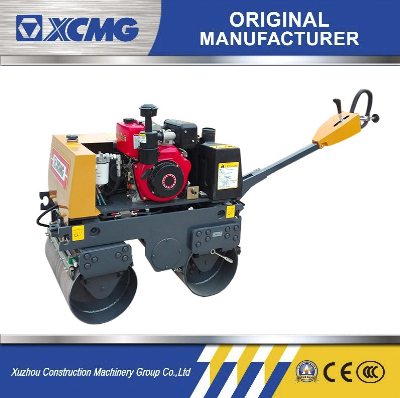

XCMG Xmr083 1 Ton Double Drum Hand Mini Road Roller Compactor

XCMG XMR083 1 Ton Double Drum Hand Mini Road Roller Compactor.   XMR083 is walk-behind double drum vibratory roller with operating mass of 0.8 tons, has features such as electromagnetic vibration, valve control hydraulic steering and comfortable operation. It is mainly used for compacting asphalt concrete surface layer, especially for urban roads, stadiums and other minor works. Can also be used for small and medium base, sub base and compacted materials. Has good edge compaction performance, in narrow job sites and groove-based shows its unique advantages.   Performance Characteristics:   * The walk behind roller relies on manual steering which is strenuous and strong labor intensity, an auxiliary steering pump is used to provide oil source. Control the three-position four way solenoid directional valves group to achieve the extension of steering cylinder, and control the steering of whole vehicle, ensure the machine manipulation is free and flexible. * Tandem type closed hydraulic system consists of piston pump and two cycloid motors, can effectively prevent slip of drive wheel, cycloid motors drive the vehicle through wheel reducer by reducing the speed and increase the torque, so that the machine has excellent grade ability and drive ability. * Positioning device is formed by plug screw, spring, spring seat and steel ball, positioning bolt and umbrella-type plate, in the neutral position of umbrella-type plate is ball socket, when the plate is in middle position, the vehicle is in stationery status, the steel ball press into the ball socket, and it is always rolling friction between steel ball and umbrella plate, this device is simple, positioning reliable and service-free. * The nether frame and steering frame are connected by pivotal bearing, ensuring the compact structure of whole machine, good maneuverability, small in size and easy maintenance.Product ParametersItemXMR083 Operating mass 800kg Drum diameter 400mm Drum width 708mm Speed range 0~3.6km/h Theoretical gradeability 30% Minimum turning radius 3135mm Minimum ground clearance 250mm Wheel base 720mm Steering angle ±15° Vibrational frequency 55Hz Nominal amplitude 0.32mm Exciting force 15.8kN Engine type 186F Rated speed 2600r/min Engine rated power 5kW Engine fuel consumption 280g/kW.h Overall dimension(length× width× height) 2695×760×1200mm Hydraulic tank volume 16L Diesel tank volume 5.5L Water tank volume 40L Product ShowCompany ProfileFAQ1: What kind terms of payment can be accepted?A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted2: What certificates are available in Machinery?A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,3: What about the delivery time?A: 30 days after receiving the deposit.4: What about the warranty time?A: 12 months after shipment or 2000 working hours, whichever occuts first.5. What about the Minimum Order Quantity?A: The MOQ is 1 pcs. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
