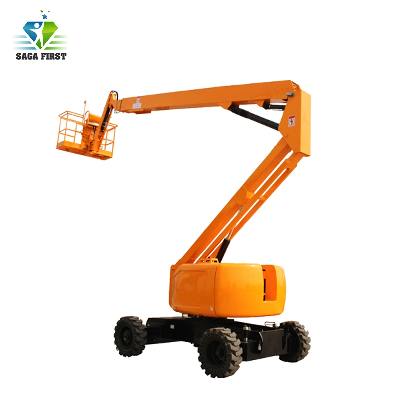

Mini Articulating Construction Boom Lift Aerial Work Platform

10m~45m Articulated Telescopic Boom LiftSAGA FIRST Articulating Boom Lifts are of two power motors:battery and diesel,with maximum working height from 12m to 47m. Our main components are all imported from USA and Europe. The electric powered boom lifts using DC battery power can be worked quietly suitable for indoor use. The emergency descending system which can let the machine work normally when the power is cut off. The diesel powered boom lifts have the weighting device with patented technology which can accomplish the exact weighing for the platform load, safety and reliability, anti mal-operation function to avoid the engine restart in starting status and suitable for outdoor use.Optional driving wheel and steering wheel: 1. 2WD×2WS2. 2WD×4WS3. 4WD×4WSOptional lifthing and driving power:1. Battery power: 10~18m lifting height2. Diesel power: 14~52m lifting height  Model TypeSPABL-10BSPABL-12BSPABL-14DSPABL-16DSPABL-18DSPABL-20DWorking Height Maximum10m12m16.2m18m20m21.7mPlatform Height Maximum12m14m14.2m16m18m20mWorking radius maximum5.8m8m8m9.5m10.8m11.7mLift capacity200kg200kg230kgLength( stowed)  4.35m5.3m6.2m7.7m8.25m9.23mWidth (stowed)  1.5m2m2.29m2.29m2.35m2.35mHeight(stowed) 1.99m2.05m2.38m2.38m2.38m2.39mWheel base 1.65m2m2.2m2.4m2.6m2.6mGround clearance  0.15m0.2m430mm430mm430mm430mmPlatform measurement1.1*0.65*x1.13m1.1*0.65*x1.1m1.83*0.76*1.13m1.83*0.76*1.13m1.83*0.76*1.13m1.83*0.76*1.13mTuning radius (inside)2.16m2.2m3.0m3.0m3.0m3.0mTuning radius (outside)5.2m5.2m5.2m5.2m5.2m5.2mTravel speed(stowed)4.2km/hTravel speed(raised or extended)1.1km/hGrade ability45%45%45%45%45%40%Solid tire33*12-20Swing speed0~0.8rpmTurntable swing360° ContinuousPlatform levelingAutomatic levelingPlatform rotation±80°Hydraulic tank volume100LTotal weight5200kg5500kg7757kg7877kg8800kg9200kgControl voltage12V/24V DCDrive type4*4 (All-Wheel-Drive) or Optional 4*2EngineDEUTZ D2011L03i Y(36.3kw/2600rpm)/Yamar(35.5kw/2200rpm)Model Type No.SPABL-12JIBSPABL-14SPABL-16JIBSPABL-18SPABL-20JIBSPABL-24JIBSPABL-25JIBSPABL-30JIBSPABL-38JIBSPABL-40JIBWorking Height Maximum14m16.2 m18 m20m22 m26.2 m27.1 m32 m40.1 m42.3mPlatform Height Maximum12m14.2 m16 m18 m20 m24.2 m25.1 m30 m38.1m40.3mHorizontal Outreach Maximum8m8 m9.8 m10.8 m12.6 m15.8 m16 m 20.2 m 21.6 m 21.6m Lifting capacity200kg230kg230 kg230 kg230 kg230 kg230 kg 480 kg 480 kg 480kgUp & Over Height maximum5m7.75 m7.75 m9.2 m9.2 m9.8 m6.8 m230kg230kg230kgLength( stowed)  5.3m6.2 m7.7 m8.25 m9.07 m9.92 m9.75 m12.2 m19.5 m23.6mWidth (stowed)  2m2.29 m2.28 m2.35 m2.38 m2.48 m2.58 m12.52 m11.37 m12.15mHeight(stowed) 2.26m2.38 m2.38 m2.38 m2.49 m2.82 m2.8 m2.5 m2.5 m2.49mWheel base 2.4m2.2 m2.45m2.4 m2.45m3 m3 m3.43 m4.17 m3.9mGround clearance  200mm0.43 m0.43 m0.43 m0.43 m0.43 m0.43 m0.43 m0.43 m0.43 mPlatform measurement  *1.1*0.67m1.83*0.76 m1.83*0.76 m1.83*0.76 m1.83*0.76 m1.83*0.76 m1.83*0.76 m2.44×0.91m2.44×0.91m2.44*0.91*1.13mTuning radius (inside)3.0m3 m2.61 m3 m2.66 m2.6 m2.6 m2.74 m3.13m3.13mTuning radius (outside)5.2m5.2 m5.61 m5.2 m5.66 m5.85m5.85 m5.85 m6.5m6.5m Speed(stowed)3.2km/h4.2 km/h4.2km/h4.2km/h4.2km/h4.2 km/h4.2 km/h4.14 m4.14 m4.14mTravel speed(raised or extended)0.8km/h1.1km/h1.1km/h1.1km/h1.1km/h1.1km/h1.1km/h1.1km/h1.1km/h1.1km/hTurn table swing360° Continuous360° Continuous360° Continuous360° Continuous360° Continuous360° Continuous360° Continuous360° Continuous360° Continuous360° ContinuousPlatform LevelingAutomatic levelingAutomatic levelingAutomatic levelingAutomatic levelingAutomatic levelingAutomatic levelingAutomatic levelingAutomatic levelingAutomatic levelingAutomatic levelingSwing Speed0~0.8rpm0~0.8rpm0~0.8rpm0~0.8rpm0~0.8rpm0~0.8rpm0~0.8rpm0~0.8rpm0~0.8rpm0~0.8rpmGrade ability30 % 45 % 45% 45% 45% 45% 45% 45% 45% 45% Solid tire33*12-2033×12-2033×12-2033×12-2033×12-2036×14-20385/65-24385/65-22.5385/65-22.5445/65-22.5Motor PumpCummins Cummins Cummins Cummins Cummins Cummins Cummins Cummins Cummins Cummins  Safety Precautions:1. Explosion-proof valves   2. Spillover valve     3. Emergency decline valve       4. Check Valve                 5. Adjustment Valve              6. Gradienter  Features and Advantange:1. Complete Safety Devices: Standard four-link weighing devices; measures such as overload protection, automated detection device for detecting platform amplitude and height, automatic control of the movement speed and traveling speed of the boom, and high-precision weighing devices, to ensure the safety and stability of operation in all directions. 2. Control box:Full proportional control handle and CAN bus as well as PLC control system with high positioning accuracy are easy to be controlled and can be operated by the users at will.  3.Traveling System:The closed running system consisting of electro-proportional variable pump, hydraulic control variable motor and flow distribution valve can gain relatively high movement speed and relatively low and stable running speed. The system works efficiently and generates less heat. 4. Hydraulic
