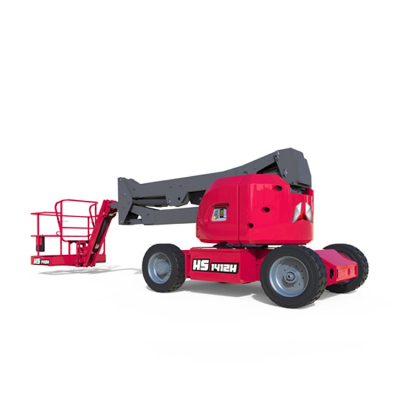

Hered 14m 48V/370ah Electric Articulating Boom Lift with CE (HA14JE)

Product DescriptionProduct Features:AC motor drive, smooth driving, great micro mobility.High-precisoion load sensing system, less accidental false alarms and shutdowns.Stable rotation with integrated rotary reducer, comprehensive protection.Suitable for dust environment, zero emission, stable operation and energy saving.Large capacity batteries, strong endurance.Specification:ModelHA14JEMeasurementsMax. Working Height15.7mPlatform Height13.7mHorizontal Reach7.24mMax. Up and Over7.7mA-Length (Stowed)6.42mB-Width (Stowed)1.75mC-Heights (Stowed)2.01mD-Platform Length1.52mE-Platform Width0.76mF-Wheel Base2.01mG-Ground Clearance0.2mProductivityPlatform Capacity230kgDrive Speed (Stowed)5.2km/hGradeability (Stowed)30%Turning Radius (In.)0.8mTurning Radius (Out.)3.8mTurntable Rotation355°Platform Rotation±90°H-Turntable Tail Swing0Tilt Sensor Activation Max.3°Operating Wind Speed12.5m/sPowerBatteries (V/Ah)8×6V/370AhCharger100-240V AC/35AWeightWeight6750kgHydraulic Tank Capacity20L Detailed PhotosPackaging & ShippingHome Page: https://maxizm.en.made-in-china.com/Contact us: https://maxizm.en.made-in-china.com/contact-info.htmlAfter Sales ServiceCertificationsCompany ProfileFAQ  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
