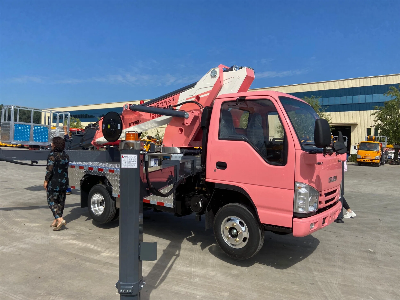

Aerial Work Platform Hydraulic Aerial Cage

Product DescriptionXJ30 type aerial work car Qingling Announcement model: YAD5043JGKQL6 type aerial work vehicle Advantages: The first in the country, 7 section arm blue brand 28.3 meters 1, the vehicle is not overweight, using Baosteel 960 high strength board. 2, double leg, vertical and horizontal span 6000mm/5800mm; 3. Multi-section arm design (7 sections, 6 sections synchronous telescopic), lifting height 28.3 meters. 4, double lift cylinder design; 5. 1.6m hanging basket with small platform for carrying goods; 6, box frame; 7, the vehicle height 2.68 meters; 8, working radius 16 meters. 9, small turning radius, not out of the body; Chassis: Qingling Total weight: 4495KG Quality: 4365KG Engine: D20TCIF15 Dulwich 120 HP engine (Sino-German joint venture) Gearbox: Isuzu MSB fifth gear Wheelbase: 2800mm Dimensions: 5995mm*2000mm*2700mm Tires: 650R15LT Brake: oil brake Other: electric doors and Windows, air conditioning, central control lock Top: GK30 Maximum operating height: 28.3 m Maximum working radius: 16 meters Platform load rating: 200KG Boom rotation Angle: 360 degrees Platform size: 1600mm*700mm*1100mm (small platform with load) Platform rotation range: 360 degrees infinite rotation Big arm: 7 arms, 6 synchronous telescopic, wire rope arm with spare wire rope, even if the main wire rope is disconnected, can also put people down smoothly Operating system: domestic well-known electronic control system, equipped with wireless remote control, three-way operation. Hydraulic system: electro-hydraulic proportional valve, can be stepless speed regulation, with emergency power source Hydraulic legs: X type legs, 4 double knot legs, individually adjustable. Walking plate: steel non-slip walking plate. Safety device: on and off interlock, emergency power source, two-way hydraulic balance valve  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
