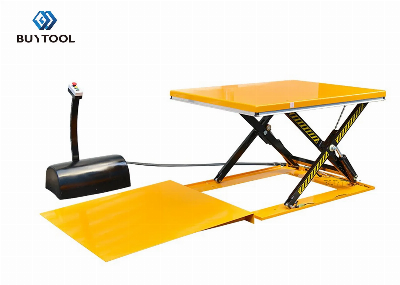

Low Profile Hydraulic Electric Lift Tables/Lifting Table

Low Profile Hydraulic Electric Lift Tables/Lifting TableHeavy duty lift tables with larger platform. Loading ramp is a standard equipment. Oiless bushings on pivot points. Static electro-hydraulic lift tables are specially designed for installation without a pit. They are manufactured to all European safety standards including EN1570: 1999. Remote power pack with pedestal and controls, pretected to IP54. Upper platform fitted with safety perimeter to prevent descent on contact with obstructions. 24V control box with UP and DOWN buttons and emergency stop. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply are AC308V/50HZ/3phase. Hose burst safety valve to stop the lift table lowering in case of hose breakage. Removable lifting eyes to facilitate handling and installation of the lift table. Mechanical safety chocks for maintenance. ModelCapacity(kg)Platform Size(mm)Min.Height(mm)Max.Height(mm)Stroke(mm)Lifting Time(second)Power packNet Weight(kg)HY100110001450×11408586077525380V/50HZ,AC 0.75kw357HY100210001600×11408586077525380V/50HZ,AC 0.75kw364HY100310001450 × 8008586077525380V/50HZ,AC 0.75kw326HY100410001600 × 8008586077525380V/50HZ,AC 0.75kw332HY100510001600 × 10008586077525380V/50HZ,AC 0.75kw352HY150115001600×80010587077530380V/50HZ,AC 1.5kw362HY150215001600×100010587077530380V/50HZ,AC 1.5kw401HY150315001600 × 120010587077530380V/50HZ,AC 1.5kw415HY200120001600×120010587077535380V/50HZ,AC 2.2kw419HY200220001600×100010587077535380V/50HZ,AC 2.2kw405FAQ:Q: What about the quality of the lift tables?A: Our lift tables are CE approved, and we have five inspection steps before shipment: 1. Inspect the raw material in accordance with ISO9001; 2. Strict inspection in the whole production process; 3. Load limit test when assembling finished; 4. 100% strict inspection of products before shipment; 5. If needed, inspection by buyer. Q: How long is the quality guarantee?A: All of our lift tables carry one-year warranty. Q: What's the leadtime?A: Normally 30 days. If you order more than 5 itmes mixed in one container, it will be 45 days. If you order one item in one container, it will be 20 days. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
