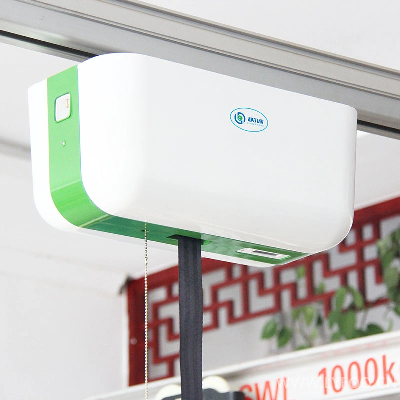

OVERHEAD TRACK PATIENT LIFTPatient Transfer System/Patient Handling System)(Performance Parameter-Host 1 Battery Patient Lift host consists of transmission mechanism, hoisting mechanism, guiding mechanism, safety limit switch, lithium battery, hanging trolley, body shell and bottom-carrying sling. The host can make the patient up or down to a designated level, and move along with the track by its trolley system, which enable the Patient Lift host travel freely. ItemParameterHoisting Speed65 (mm/s)Rated Capacity150 (kg)Lifting Stroke1.6 (m)Standby Hours/Continuous Hoisting20 days/300 timesWay to Start/StopRadio Remote ,Soft Start/stopSafety ProtectionUp/down Limit Switch, Emergency Stop Performance Parameter -Host 2 Plug-in Patient Lift host consists of body shell, bottom-carrying sling, hanging trolley, transmission mechanism, safety limit switch, etc. The power supply is 220 volts. The host can move along with track within the room or a certain area. ItemParameterHoisting Speed65 (mm/s)Rated Capacity150 (kg)Lifting Stroke1.6 (m) Power SupplyLithium BatteryWay to start/stopRadio Remote ,Soft Start/stopSafety ProtectionUp/down Limit Switch, Emergency Stop Performance Parameter -Turning DiskTurning Disk is a conjunction device for 'T' track or ' +' track, with which the Patient Lift's movement direction can be easily adjusted. It consists of transmission mechanism, locating mechanism and control module. It can make the direction adjustment precisely in 90 o clockwise or counter-clockwise. There are several sensors in the control module, which make the on/off control in an intelligent way. ItemParameterRotation speed5 (r/m)Power supplyAC (220v,50hz)ProtectionMechanical and Limit SwitchWay to start/stopRadio RemoteRated Capacity150 (kg) Performance Parameter -Track Switch Device Track switch device consists of transmission mechanism, locating mechanism and control module. ItemParameterSwitch Speed3~4 secondsPower SupplyAC (220v,50hz)ProtectionMechanical and Limit SwitchWay to start/stopRadio RemoteRated Capacity150 (kg) Notice; This system is newly developed for the seniors who can not move by themselves. we are devoted to creat a more safe, convenient, and humanizatized intelligent shift system in home, hospital and nursing home. please contact us for product video and other detailed information. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
