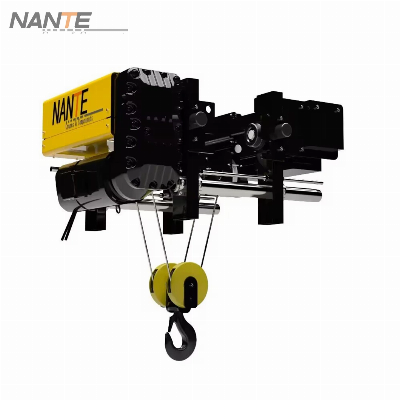

2t-20t Fem Standard Single Girder Electric Low Headroom Wire Rope Hoist

2t-20t Fem Standard Single Girder Electric Low Headroom Wire Rope HoistProduct Description      This extensive range of low headroom hoists are mounted on a single trolley with four wheels, designed to run on the bottom flange of a single beam or girder. This low-headroom design provides a higher top hook position in a restricted headroom compared to a hoist of standard headroom construction.      The following unique features enhance safety, performance and reliability or reduce lifetime costs by enabling inspection and service tasks to be executed in less time.Compact structure, light weight, small wheel pressure, maximum use of space, comprehensive cost performanceModular design, low maintenance costs, complete spare parts serviceAdopt low clearance design to save building height for customer workshop design, increase workshop hoisting area and save construction costSelected quality parts, low noise, safe and reliable, durablePrecise positioning, efficient operation, high sustainable work efficiencySafe and reliable, operational monitoring, easy to repairDesign and Manufacturing FeaturesDesign Code:       NANTE's NHA low headroom follows the design code of FEM, CMAA, ISO EN, BS, GB standard. Gear Motor:      Worldwide top brand gear motor like SEW, ABM or NORD to make sure the quality, IP55, F insulation class, overheat protection, manual release bar, and equipped with electro-magnetic brake.Rope Drum:       Made of seamless pipe, CNC machined with precision of concentricity. Advanced processing methods ensure concentricity of the reels. The depth of the rope groove complied with FEM standard. High-strength lock plate are fastened on the drum to hold the wire rope ensure the safety of lifting. Wire Rope:       Adopt high-performance and high-strength wire rope with zinc surfacing-plating which is effectively prevent corrosion. High breaking force and good flexibility.Rope Guider:       Use Special high-strength Nylon which light weight, prevent wire rope from shipping and loosing to off-groove, and safety first.Hook Block:      DIN standard T grade hook with safety latch, and the hook is made by forged high-strength alloy steel. 360 degree rotation and ergonomic design. Control Panel:      Follow IEC standard, IP55 powder coating high quality enclosure, socket plug-in for easy connection, DIN standard terminal, international brand for the inverter, MCB, Contact and electrical devices on the panelSafety Protection Functions:      NANTE Low headroom hoist crane include a lot of protection functions, like overheat protection for the lifting, load cell type overload limit switch, up&down position limit switch. Phase sequence relay, and other optional functions, like crane monitoring system, LED load displayer. Anti-corrosive Treatment:     Shoot Blasting follow ISO8501-1 SA2.5 class, roughness follow ISO 8503 G class, clearness follow 8502-3 Level II. Use top brand like Hempel, International, and Jordon's Rich zinc epoxy painting for the prime, middle layer coating. Use polyurethane topcoat for the finished layer coating. All NANTE painters are trained or inspected by NACE or FROSIO level II Inspector  Product Parameters  Techncal Data of NHA Single Girder Low Headroom HoistCapacity(t)Lifting Height(m)Lifting Speed(m/min)RopeReevingLifitng Power(kW)Travel Speed(m/min)Travel Power(kW)Work DutyFEM/ISOH(mm)C(mm)Rail GaugeB(mm)26/9/12/15/185/0.84/13.3/0.520/50.643mM6210556150-3003.26/9/12/15/185/0.84/13.3/0.520/50.642mM5210556150-30056/9/12/15/185/0.84/16.1/120/50.642mM5260596200-3506.36/9/12/15/185/0.84/16.1/120/50.641AmM4260596200~35086/9/12/15/185/0.84/19.5/1.520/50.953mM6325750200-410106/9/12/15/185/0.84/19.5/1.520/50.952mM5325750200-41012.56/9/12/15/185/0.84/112.5/220/50.951AmM4325750200-410166/9/12/15/184/0.64/115/2.520/50.95×22mM5400920300-450206/9/12/15/184/0.64/115/2.520/50.95×21AmM4400920300-450Application:We have been supplying cranes and hoists to almost every industrial sector for decades and can provide you with an unrivalled source of knowledge and expertise no matter what you are lifting. Every industry has its own unique lifting requirements but with over 50,000 installations globally you can rest assured that our team can design and deliver the right cranes and hoists to meet your needs. Our hoist can be used on Aerospace, Automotive, Construction, Oil and Gas, Hydro, Wind, nuclear power station, industry and manufacturing, steel mill, paper mill, plastic mill, precast concrete, railway, ship and boat, and marine industry.   Company ProfileFAQQ1: Are you Manufacturer or Trading Company?A1:We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department,Q2: Which standard of your crane and crane components apply to?A2: Our Crane can design and manufacture base on FEM, CMAA, ISO EN, GB standard.Q3: How do you ensure your product quality?A3: All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and w
