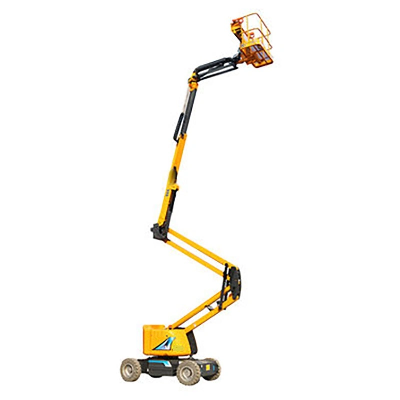

Product DescriptionCE 5ton 16m New Hydraulic Mobile XGA16 Aerial Work Platform16M articulated mobile elevating work platform aiming to satisfy customers' requirements. Intelligent and perfect control system features the humanized layout, the maintenance-free design and easy use and maintenance, providing the multiple options and comprehensive safety. Advantages and highlights:* Σ-shaped boom, compact and flexible, able to ascend and descend vertically or extend horizontally to cross obstacles; the platform can turn 160°, creating a wider operation area; compact and narrow turntable eliminates tail swing and improves operation efficiency; * Off-road chassis, 4W drive system, solid off-road wide tire, full-time axle balance system, 38kw power, excellent adaptation to any terrain. Work platform is enable to extend out, enlarging the work space, together with the foldable fence making the transportation easier. * Full - range work; direct and friendly control panel easy to control; precise and effective electric-hydraulic proportional system Chassis tilting protection, platform overloading warning, emergent lowering, safety speed limit, flexible start/stop technologies. Product ParametersItemXGA16Parameters of traveling stateOverall dimensions (L × W × H)6.69×2.26×2.13 mWorking platform overall dimensions1.83×0.76×1.15 mMax. speed6.12 km/hMax. gradeability≥30%(2WD) ≥45%(4WD)Min. external turning radius≤4.5mGround clearance/m (center)0.41 mWheelbase2.1 mTotal mass6900 kgMain Operation Performance ParametersRated working height16.05mMax. platform height14.05mMax. working range8.22mMax. net spanning height7.14 mScope of platform swing160°Slewing radius of turntable1.145 mMax. Load capacity230 kgMax. Tail swing0 mControl system12V DC proportional controlWorking speedPlatform lifting/lowering speed0.1~0.3m/ sSlewing speed0.5~1r/minEngine ParametersEngine manufacturerBritish Imported / Germany ImportedEngine model 404D-22/ D2011 L03iEngine rated power38KW/3000rpm, 36.3KW/2800rpm Detailed Photos Company Profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
