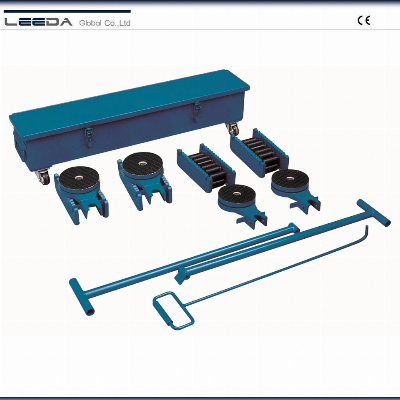

Complete Machine Skate Kits Rsk Maximum 320ton

Complete Machine Skate Kits- For short, variable transportation distances- For installation, maintenance, repair works, and movement of heavy loads.- The steering handle gives you precise control making it easy to maneuver large machinery or into tight areas.Moving speed no exceeding 5m/min.- Minimum turning circle is 3m.- Rolling resistance: 4-7% of load weight- The Load may rock on an uneven surface, any roller skate's load weight will be increasing.     Therefore, select double the rated roller skate capacity.-  When we mix and match to use roller skates (or different load supports), keep the load at the same loading height.   Otherwise, roller skates will tip and become point-loaded.- The track surface is important for the safe transportation of the load, not the carrying capacity of the roller skate.  Tiles are unsuitable. Movement on the tarmac and concrete is restricted.   In these cases, it is recommended to put a steel plate of a minimum of 10mm thickness underneath.Included: 4 roller skates, 4 turntables,4 steering handles, 1 drawbar  Model RSK40RSK60RSK120RSK240RSK320Set Capacity(tons)4060120240320Each Roller Skate Capacity(tons)1015306080Length (mm)210220270380530Width          (mm)100112127168182Height without Top(mm)677491125145Total Height(mm)108117140192212Roller WheelDia. (mm)Ø18Ø24Ø30Ø42Ø50Swivel Top(mm)Ø130Ø130Ø150Ø190Ø220Top Stype Rubber PadRubber PadRubber PadRubber PadRubber PadIncluding One Metal CaseOne Metal CaseOne Metal Case----Net Weight of Kit                           (kg)505690190330                  Machinery Skates Fixed Type SF                                 Machinery Skates Adjustable Type CM                                   Machinery Skates Steering Type ST                            Machinery Skates Kit ET                                                       Roller Skates RS                                                             Machinery Skates Kit SK04                            Machinery Skates VA                                                          Roller Skates HRS                                                     Machinery Rotating Skates CRP  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
