Wet Mix Tunnel Shotcrete Construction Spray Machine Equipment for Swimming Pool

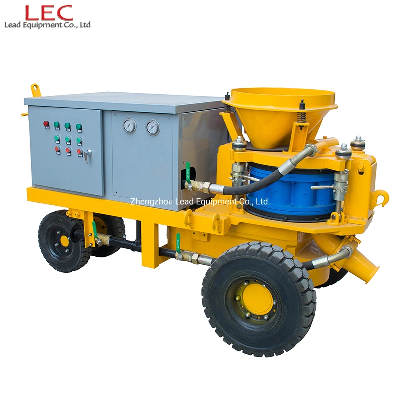

LSZ3000 Shotcrete Machine1. Description:LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.The machine is suitable either for manual spraying or by means of a robotic arm.Basic: Electric drive can be combined with tyre chassis.Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel2. Application:LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.3. Features:It can both for dry and shotcrete concrete spraying.Drive typeelectric motor driveRated Output  5m3 /hMax. Horizontal Conveying Distance35mMax. Aggregate Size15mmConcrete Slump8 -15cmConveying Hose Inner Diameter51/ 64mmOperating air Pressure0.3-0.6MPa (43-86PSI)Air Consumption 10~ 12m3 /min(357-430CFM)Main Motor Power                            7.5kW(10hp)Dosing Pump:                                BRJ15Dosing Pump Rated Pressure                0.6MPa(86PSI)Dosing Pump Output                        17.5 -88L /hVoltage                                        220V, 380V, 440V, 660V, 50Hz/60HzMaterial Charging Height1.17mRotor Speed11r/minOverall Dimension(L × W × H)              2.05× 0.95× 1.18mNet Weight1200kg4.Our Company:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
