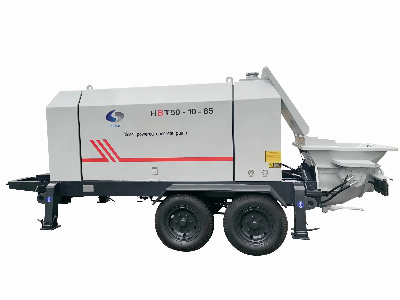

Tobemac 60m3/H Small Diesel Concrete Pump for Sale

Main Technical ParameterModelHBT40R/1010SMax. Theoretic Delivery Capacity40m3/hMax. Theoretic Delivery Pressure10 MPaConcrete Cylinder( Bore× Stroke)150×1000 mmType of Distributing ValveS ValveFeeding Hopper Capacity400 LFeeding Height1150 mmDiameter of Discharging GateΦ125 mmDiameter of Delivery PipeΦ125 mmPower90 kWPower TypeWEICHAI Diesel EngineBrand of Main Oil PumpJapanese KawasakiMain Cylinder( Bore× Stroke)110×1000 mmCapacity of Hydraulic Oil Tank500 LMax. Aggregate Size(Pebble/Gravel)40 mm / 30 mmRated Delivery DistanceVertical100 mHorizontal200 mTotal Weight4200 kgOveral Dimension (L×W×H) mm4500×1900×2000TOBEMAC 40 diesel concrete pump introduction     1. Double open hydraulic loops with two pumps, makes the whole hydraulic system much simpler. 2. The wireless remote equipment is convenient for operation far away. 3. Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction changed reliably. 4. The design of hopper and S valve adopt I-DEAS software to calculate, with good rigidity to avoid the phenomenon of hopper distortion and S valve breakage. 5. The radiator equipment makes the working oil temperature of hydraulic system below 70ºCand makes the machine in normal status. 6. Though proximity switch, the operating position is restricted to ensure that the s valve swings back and forth and reversals. 1: What kind terms of payment can be accepted?A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.2: What certificates are available in Machinery?A: For the certificate, we have CE, ISO,EPA(USA),CCC.3: What about the delivery time?A: 7-20 days after receiving the deposit.4: What about the warranty time?A: 12 months after shipment or 2000 working hours, whichever occuts first.5.What about TOBEMAC service?1). Offer all relative material for customer to know and better use the machine.2). Periodically after service follow up, offer any necessary support if needed.3).For the new machine, within determined limits, the manufacture guarantees warranty for a period of 12 months after 1200 working hours(whichever comes first).4).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.5).The warranty is valid on the condition of all the terms listed in the contract was observed.  Certification:Our service1.Installation, debugging, operators trainning;2.Maintanence:A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;C. Call us at any time if you have problems about our concrete mixers;D. If needed, we will send engineers to your site to solve your problems.3.Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;4.Spare parts supply;Contact with us!Mr.LEO ZHAO  ----------------------------------------------HANGZHOU TOB ENGINEERING MACHINERY CO.,LTD.ADD: HUTANG INDUSTRIAL PARK ,DACIYAN TOWN,JIANDE CITY,ZHEJIANG PROVINCE,CHINA  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
