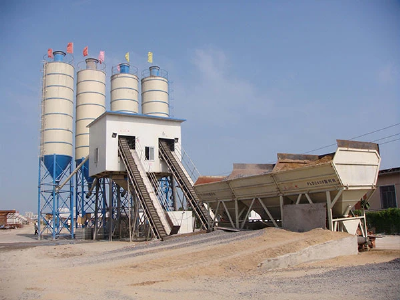

90m3 Concrete Mixing Batch Plant Hzs90V Mobile Concrete Batching Plant

Concrete Batching Plant Commercial TypeHZS90V Theoretical capacity(m³/h) 180 Capacity of mixer(m³) 3 Installed capacity(kw) 270 Concrete Batching Plant Commercial Type HZS90V PRODUCT FEATURE Concrete batching plant is a kind of periodical forced mixing equipment. It mainly consists of aggregate burdening delivery system, powder storage supplying system, liquid storage supplying system, weighing system, mixing system, electric control system and main tower framework, etc. It is a kind of automation equipment that automatically weighs multiple raw materials (aggregate, cement, coal ash, water and additive) as per a formula, mixes through forced mixer and produces finished concrete meeting requirements. The plant features high weighing precision and reliable continual running. It is applied to large-scale construction projects and building that demands for high quality concrete, such as high-speed railway, large-scale bridge, nuclear power plant and water conservancy and hydropower engineering.  Concrete Batching Plant Commercial Type HZS90V DESCRIPTION * High production capacity The production efficiency increased by 20%, reaching the leading level in China. Under standard operating conditions, The actual productivity of the HZS90 station increased to more than 75 m³/h * Accurate measurement and high precision The measurement accuracy compliance rate has been increased to more than 90%, Stay ahead of all competitors in the industry The metering accuracy of all materials fully meets the requirements of high-speed rail * Easy maintenance The layout of the main mixing building is more reasonable, and there is sufficient space for the maintenance of key components; Quick-release shaft end seal, the disassembly time of a single shaft end is shortened from 2 days to 0.5 days; * Low energy consumption The energy consumption of unilateral concrete is 20% lower than the industry level; Using composite screw mixing technology, the installed power is reduced by 50KW Taking HZS180 station as an example, the electricity consumption of unilateral concrete production was reduced from 0.55 kWh to 0.4 kWh. The annual output of 300,000 square meters of concrete can directly save electricity costs up to 50,000 yuan. Official Concrete Batching Plant Commercial Type HZS90V 90m3/H Automatic Mobile Concrete Batching PlantHZS90 concrete mixing plant is a new kind of concrete mixing equipment researched and developed independently by our company on the basis of absorbing the advantages of foreign and domestic mixing plants of the same type.HZS90 cement concrete mixing plant has the features of little area occupied, simple base, deliver fast easy to relocate and low energy consumption.The components of HZS90KE concrete mixing plant are:1. Storage, weighing and conveying system of aggregate;2. Storage, weighing and conveying system of powder;3. Water supply, weighing and discharging system;4. Additive storage, supply and weighing system;5. Mixing and dust-collecting system;6. The main tower structure;7. The pneumatic system;8. The electric control system.PARAMETERSMODELUNITHZS90VTheoretical production rateM³/h90Discharge heightm4Mixer type JS1500Mixer powerkW2×30Nominal volume of mixerL1500Production periodS60Max. diameter of aggregatemm≤60Volume of aggregate silom³3×15Volume of powder silo (optional)t3×100Capability of batching plantL/Silo2400Capability of inclined belt conveyert/h456Productivity of cement spiral conveyert/h90Productivity of flyash spiral conveyert/h45Standard installed capacitykW153Weighing range and accuracy of sand and stonekg(500~1800)±2%Weighing range and accuracy  of cementkg(200~900)±1%Weighing range and accuracy  of flyashkg(100~400)±1%Weighing range and accuracy of waterkg(90~300)±1%Weighing range and accuracy of additivekg(10~40)±1%   Pictures show/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
