Ncm-4II Internal Combustion Switch Grinder Electric Rail Grinding

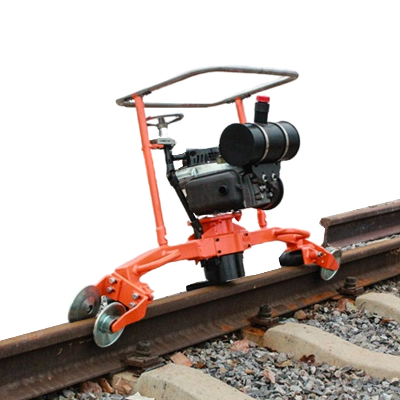

NCM-4II Internal Combustion Switch Grinder Electric Rail Grinding ApplicationNCM-4II type internal combustion switch grinder is mainly used to polish the switch rail, frog center rail, wing rail top surface and side fat edge of switch, and also can grind various types of steel rail top and side fat edge.Excellent performance, reasonable structure, reliable quality, time-saving and labor-saving, it is a necessary tool for maintenance of lines in public works departments.zmwm02Internal combustion profiling rail grinder  has the advantages of high operation efficiency, good grinding quality, easy operation, convenient operation, and so on. It is a necessary tool for Railway Public Works overhaul, maintenance and repair.  NCM-4II Internal Combustion Switch Grinder Electric Rail Grinding Main Technical Parameters Gasoline enginetypeGX200Power4.8 kWSpeed3600r/minBowl wheelΦ250* 32* φ32Linear speed of grinding wheel60m/sVertical grinding stroke170mmAdjustment angle of grinding wheel position30 °(tilt angle from vertical direction to two sides)Overall dimension1450 *900 *1300 mmWeight 134kg  NCM-4II Internal Combustion Switch Grinder Electric Rail Grinding Photos/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
