Sheet Metal Punching and Shearing Machine Ironworker

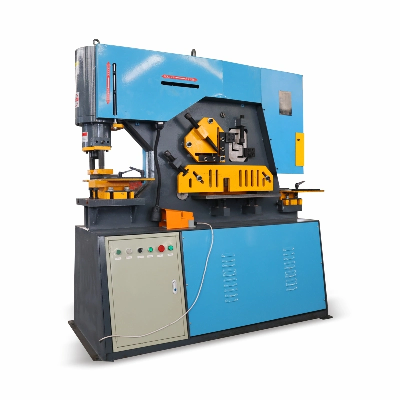

Sheet metal punching and shearing machine ironworkerQ35Y Series hydraulic combined punching&shearing machine can cut and punch all kinds of materials such as plates, square bars, angles, round bars, channels,s and so on. Adopting hydraulic transmission, the whole machine has a reasonable structure, lightweight, low noise, lightweight, reliable, and overload performance.Product ParametersModelQ35Y-16Q35Y-20Q35Y-25Pressure60T90T120TMax. plate thickness16mm20mm25mmSheet durometer≤450mm≤450mm≤450mmshear angle7°8°8°Cutting size in one stroke16*250/8*400mm20*330/10*480mm25*330/16*600mmSlider Stroke808080Number of trips8-22/min8-22/min8-22/minLaryngeal Depth300mm355mm400mmPunch Thickness16mm20mm25mmMax. punching diameter25mm30mm35mmPower4KW5.5KW7.5KWDiemsnion1650*800*1780mm1950*900*1930mm2350*980*2100mmIronworkers are designed with multiple functions, including punching, cutting, and bending It is able to punch round holes, square holes, oval holes,s, etc; steel plate, flat bar, angle steel, C-channel, H-beam cutting; steel plate bending; angle steel cutting, notching, and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching, etc.TypeRound barSquare bar90° shear(equilateral)45° shearing(equilateral)90°shear(T Type)45°shear(T Type)I-beamV-shaped164540*40125*125*1270*70*8120*120*1260*60*8126*74*5126*53*5.5205050*50140*140*1270*70*10140*140*1270*70*10160*86*6160*60*6.5256050*50160*160*1480*80*7160*160*1480*80*10200*102*9200*75*9306555*55180*180*1680*80*10160*160*1480*80*10280*124*10.5280*86*11.5407060*60200*200*1880*80*10180*180*1680*80*10300*89*11.5320*92*12508065*65200*200*2080*80*10180*180*1680*80*10360*140*14360*100*13Detailed Photos1) PUNCHING: A full set of universal punches and dies are available. Unique style allows for large-angle iron punching and large-channel punching. Large two-piece measuring table with scale and stops standard. Quick change coupling nuts and sleeves for fast changeover.2) SHEARING: Round and square bar shears with multiple holes for shearing various bar sizes. An adjustable compression device for round/square bar and channel/beam shearing. Large sturdy guards for maximum safety. Angle shear capable of cutting top and bottom angles at 45°. Diamond-shaped blades allow for high-quality cuts, minimizing material loss and deformation. 15" large indexing arm with inlaid scales; special anti-deformation blades for quality cuts; lower blade has four usable cutting edges; screws allow clearance adjustment without shims.3) CUTTING: Unique design cuts angles and flats. An electric interlocking safety protection device and three measuring stops allow precise positioning. The notching section of this hydraulic ironworker is perfect for notching sheet metal, angle iron, and more. The notching station also has an oversized table with material stops. This part of the machine can also be equipped with an optional notcher.4) BENDING: Plates up to 500 mm can also be bent. All components of the machine are of the highest quality in terms of safety and functionality. 1. A full range of universal punches and dies are available. Unique style allows for large-angle iron punching and large-channel punching.2. Large viewing window on stripper swing away design for ease of operation. Large 2-piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.3. Control box: Very easy to operate, hand-operating, safe and easy 4. Round and square bar shear has multiple holes for a variety of sizes. Adjustment hold-down device for round/square bar, channel/beam cutting. Large strong guarding or max safety.5. The angle shear has the ability to cut angles at 45 degrees on both the top and bottom leg. This gives the operator to make a picture frame corner for perfect welds. Diamond-shaped blade for quality cuts that is minimal material loss and deformity.6. Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and 3 gauging stop for precise positioning.7. Notching is a metal-cutting process used on sheet metal or thin bar stock, sometimes on angle sections or tubes. Packaging & ShippingExporting package1 unit was packed into an iron frame and then packed with 5 layers of corrugated carton. 4 strips reinforced the carton. the fix package guaranteed the machines were not damaged during transportationCompany ProfileIn 2000, "Ideal machinery" started a small workshop in Changge city, assembling rebar cutting machines and bending machines.through 20 years of development and relied on word-of-mouth advertising, our product involved kinds of the light construction machine.In order to push our machines into the overseas market, the Brand "Ideal machinery" is established in 2015 and started export trading. until now, nearly 10,000 sets of our machines are servicing the overseas construction sites now.FAQQ1. What can we do if there are problems with the products?A: Our engin
