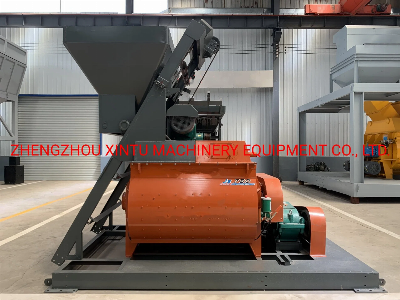

Heavy Duty Ready Mixed Js750 Twin Shaft Concrete Mixer Js Series Mixer

Brief Introduction of Twin Shaft Concrete Mixer:This JS series twin shaft concrete mixer is compulsory type with main components of feeding system(skip hopper), mixing bowl, discharging system, water supply system and electrical system.  It is widely used for small or medium scale concrete batching plant to produce commodity concrete. Features & Benefits of Twin Shaft Concrete Mixer:1.The high hardness Mn-steel makes the liner and blade have long working time. 2.With the new designed mixing system, it can work more steady and efficiency.3. Easy for operating & maintaining, saving more cost. 4. Discharge height can us special designed.parameters of bucket type twin shaft Concrete Mixer:Parameter ModelJS500JS750JS1000JS1500ItemDischarge volume500L750L1000L1500LCharging volume800L1200L1600L2400LTheoretical capacity≥25m3≥35m3≥50m3≥75m3Aggregate sizes≤60/80mm≤60/80m≤60/80mm≤60/80mmWorking circle60s60s60s60sMixing bladeSpeed35r/min30.5r/min25.5r/min23r/minQuantity2×72×82×82×9Mixing motorModelY180M-4Y200L-4Y225S-4Y225M-4Power18.5 kw30 kw37 kw45 kwLifting motorModelYEZ132S-4YEZ132M-4YEZ160L-4YZE180M-4Power5.5 kw7.5 kw11 kw18.5 kwPump motorModel50DWB20-8A65DWB35-5KQW65-100KQW65-100Power0.75 kw1.1 kw3 kw3 kwWeight1500kg6150kg9880kg10960kgDimensions (L x W x H)3030x2300x2680 mm4550x2250x2450 mm4640x2250x2250 mm5058x2250x2440 mmThis efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
